The Anycubic Photon P1 utilizes industrial-grade ball screws and linear guide rails, achieving a remarkable repeat positioning accuracy of ±0.01mm. This robust motion control system provides a rock-solid foundation, ensuring stable operation and print precision.
Resin 3D Printer

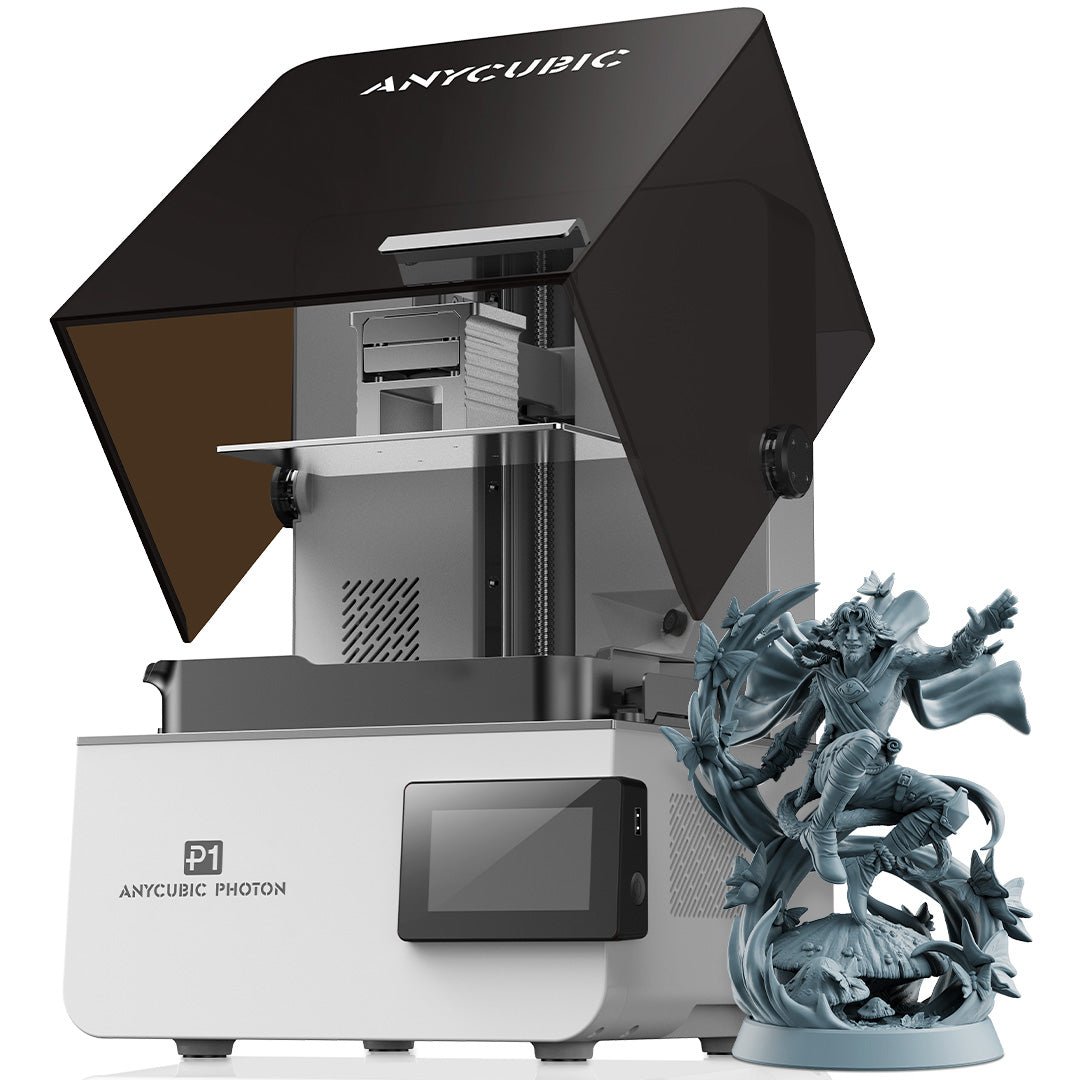

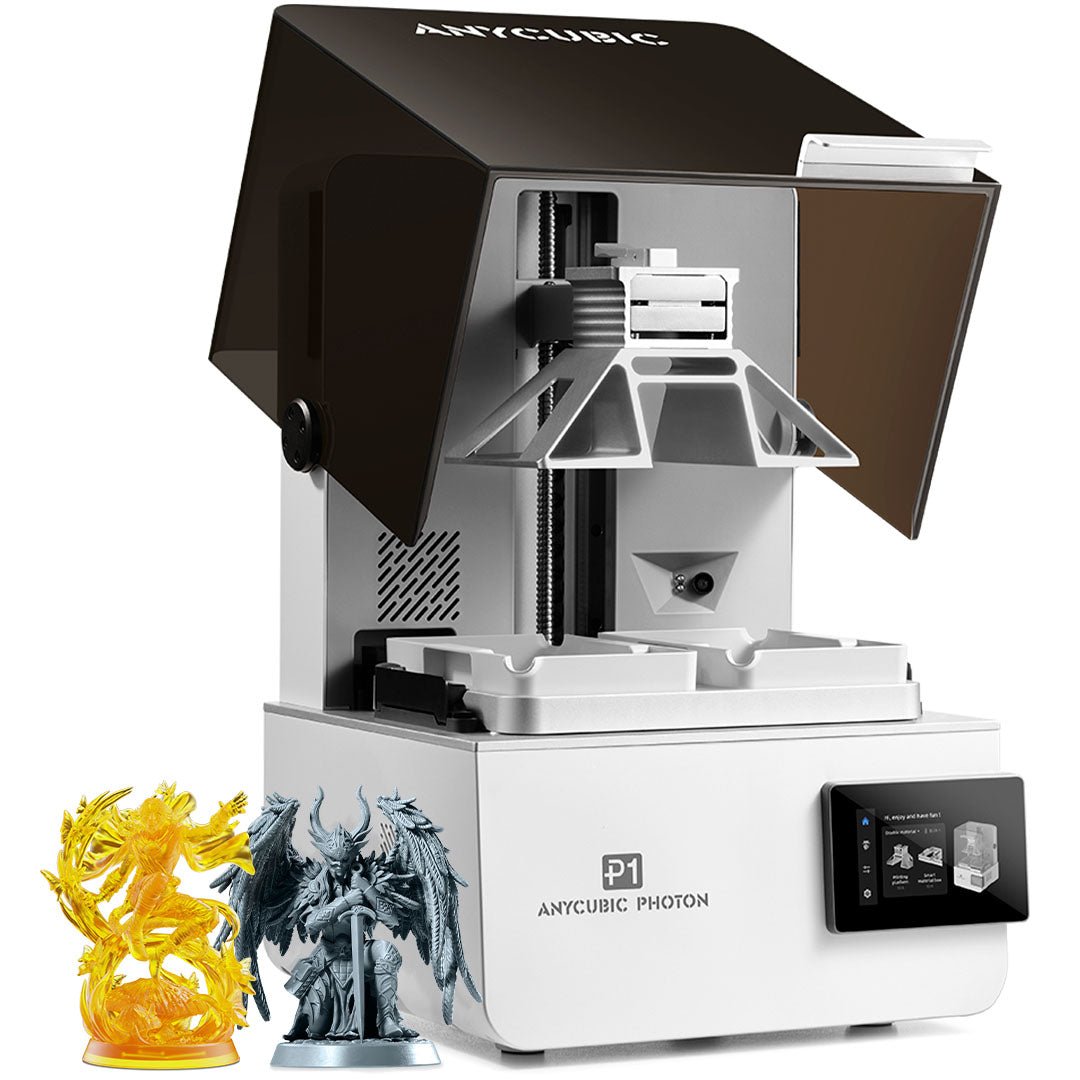

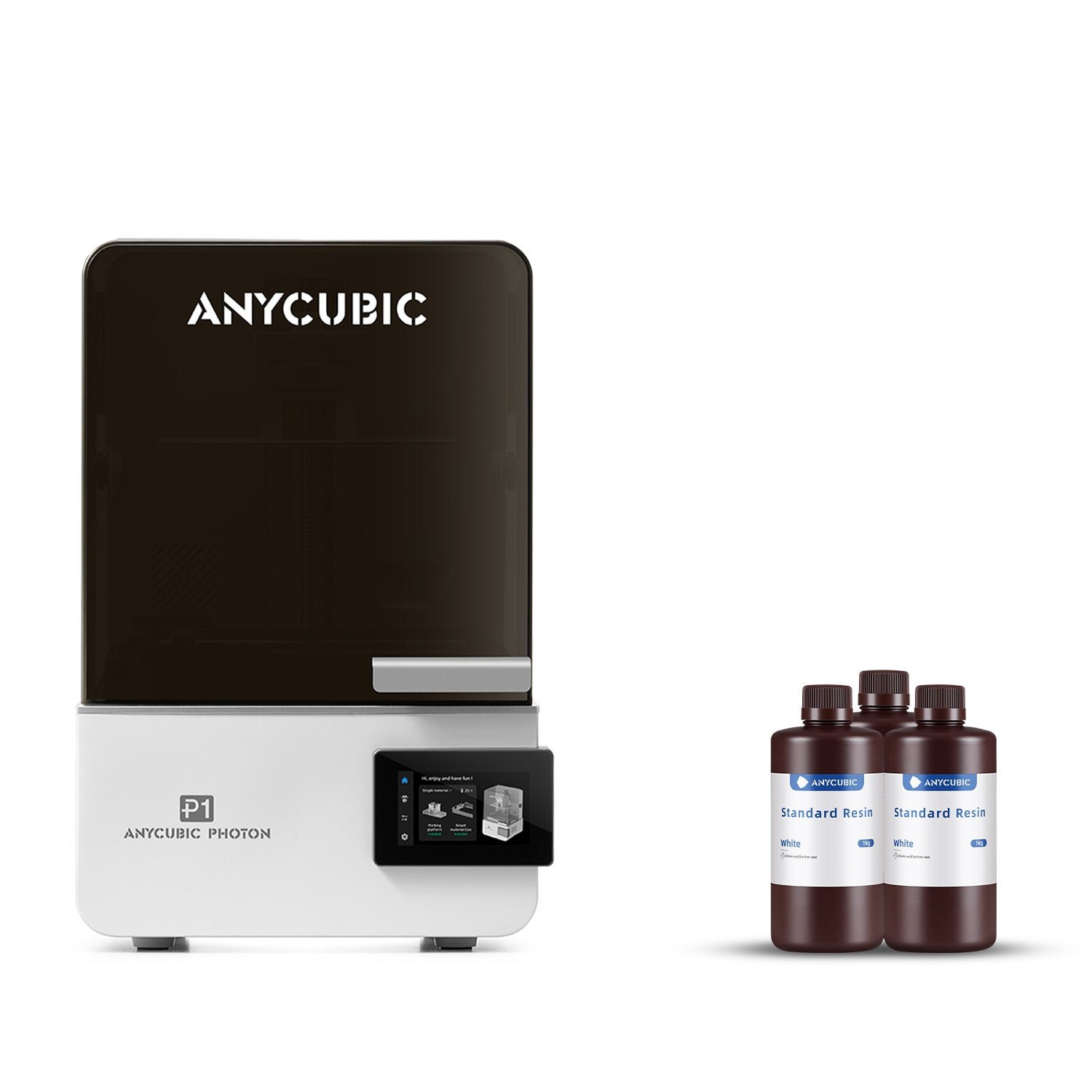

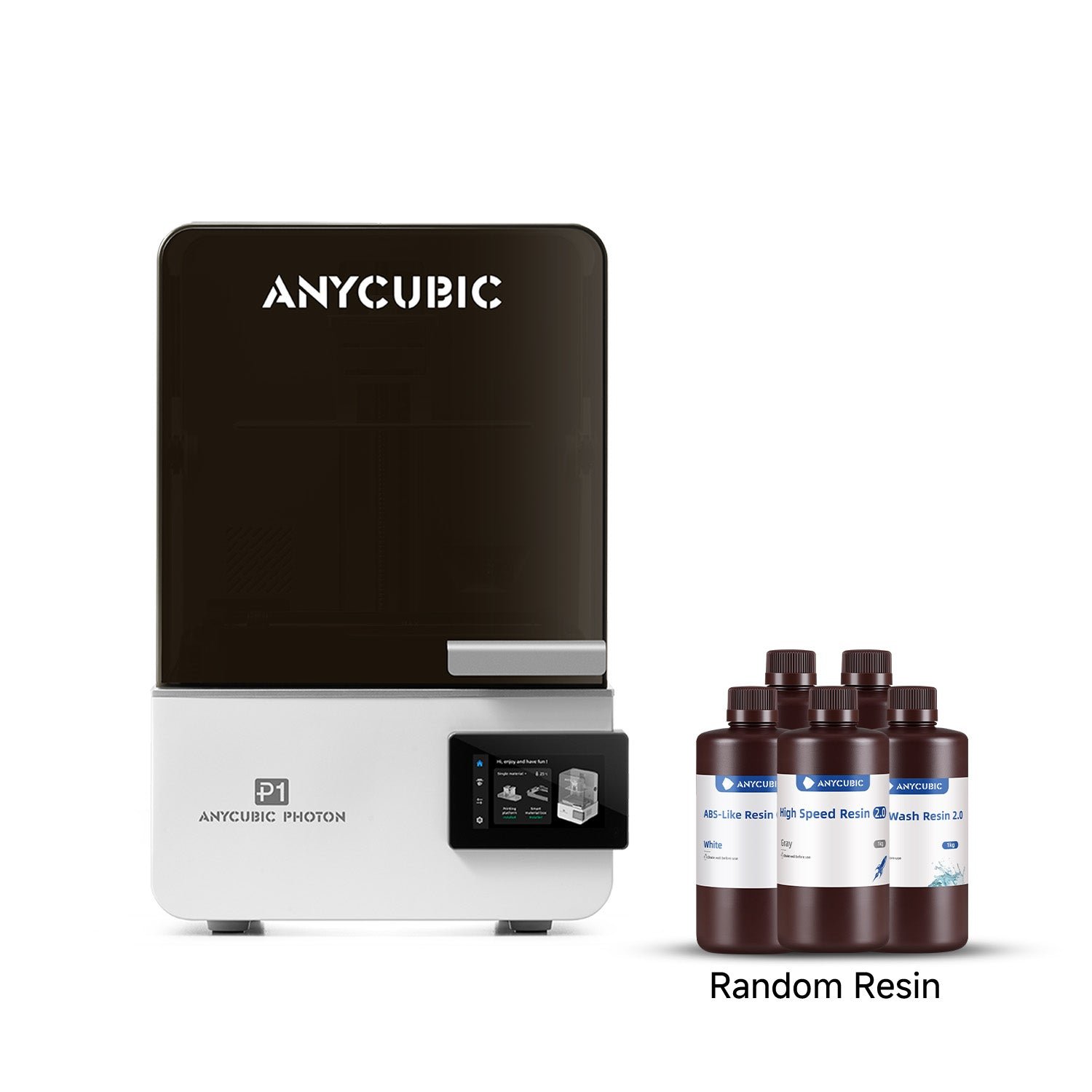

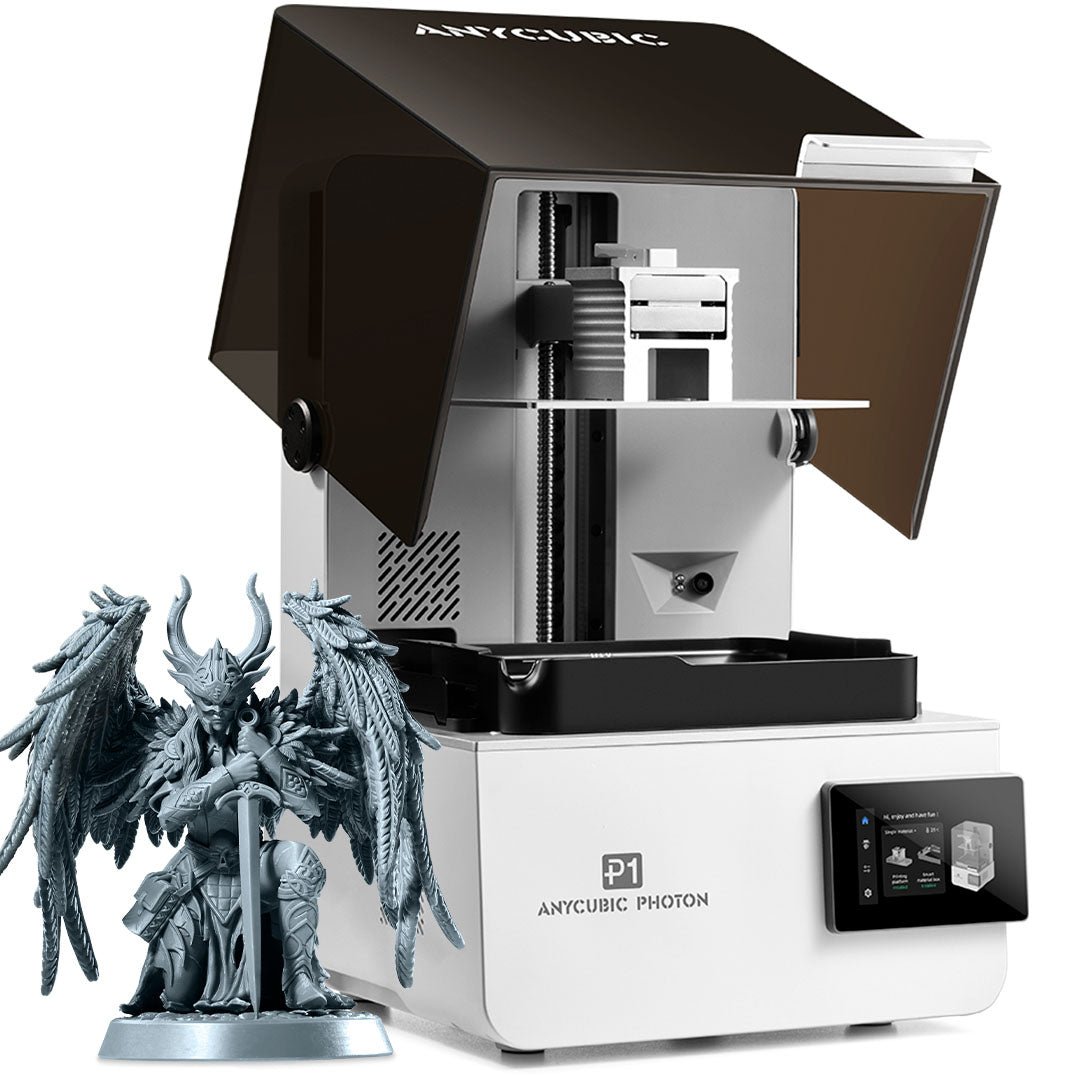

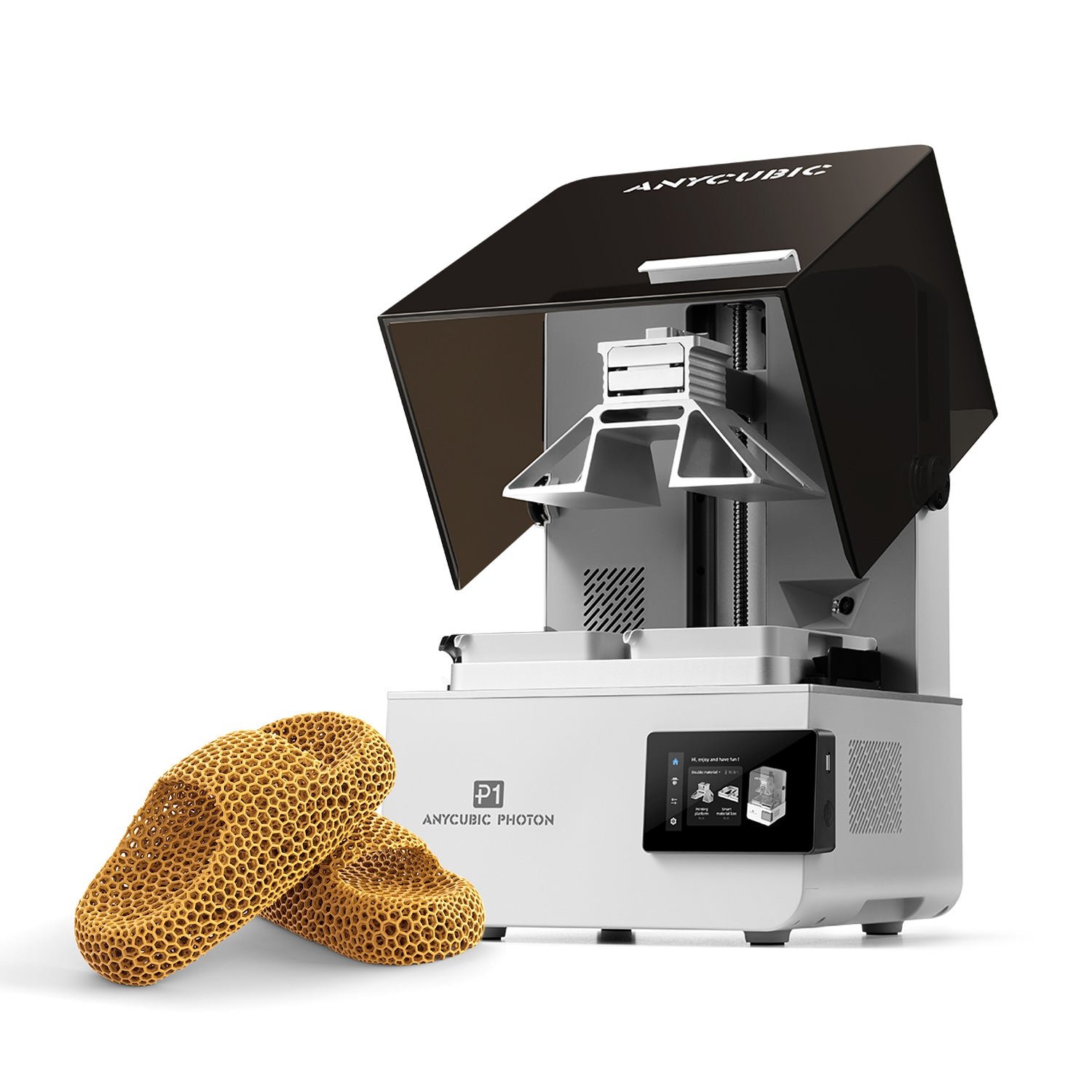

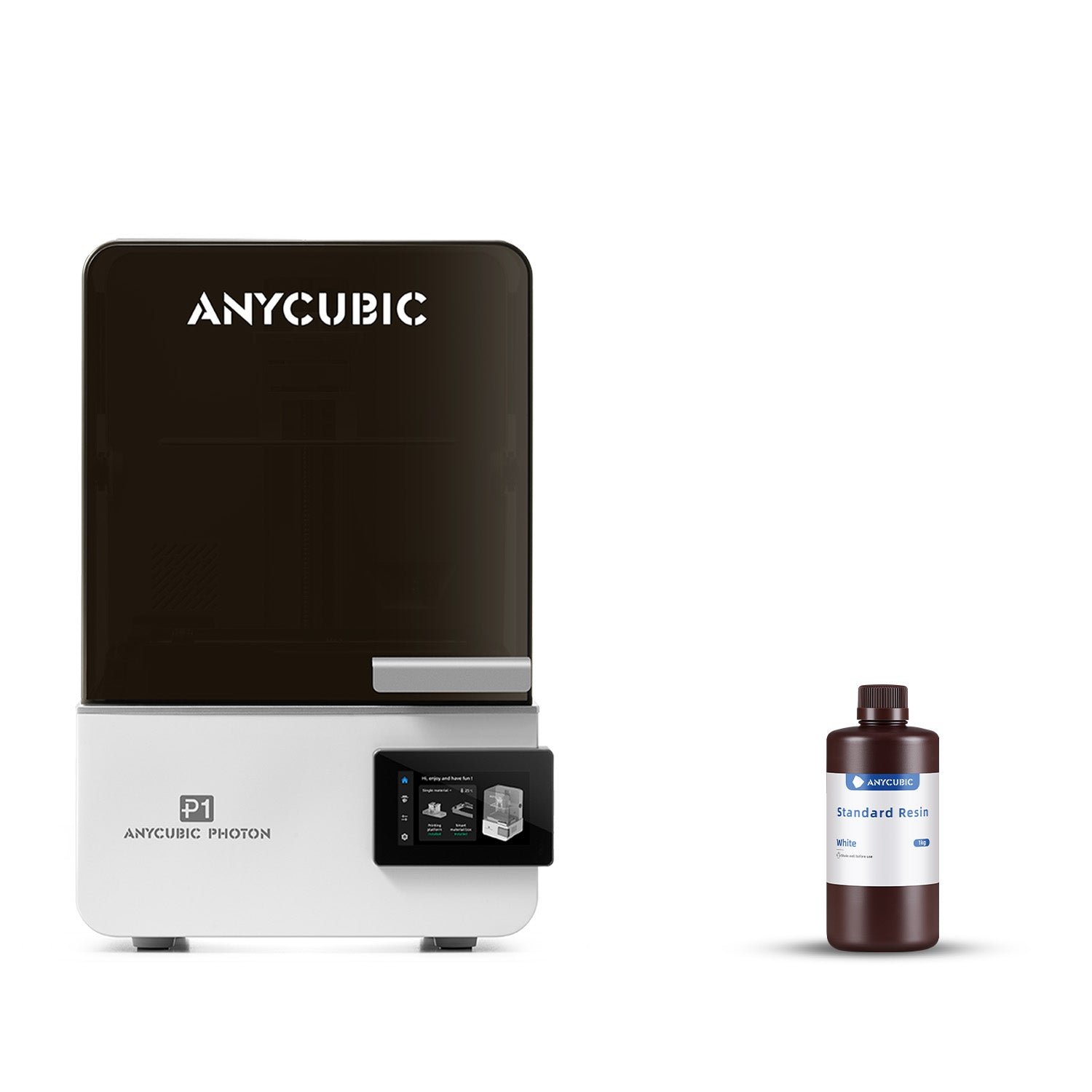

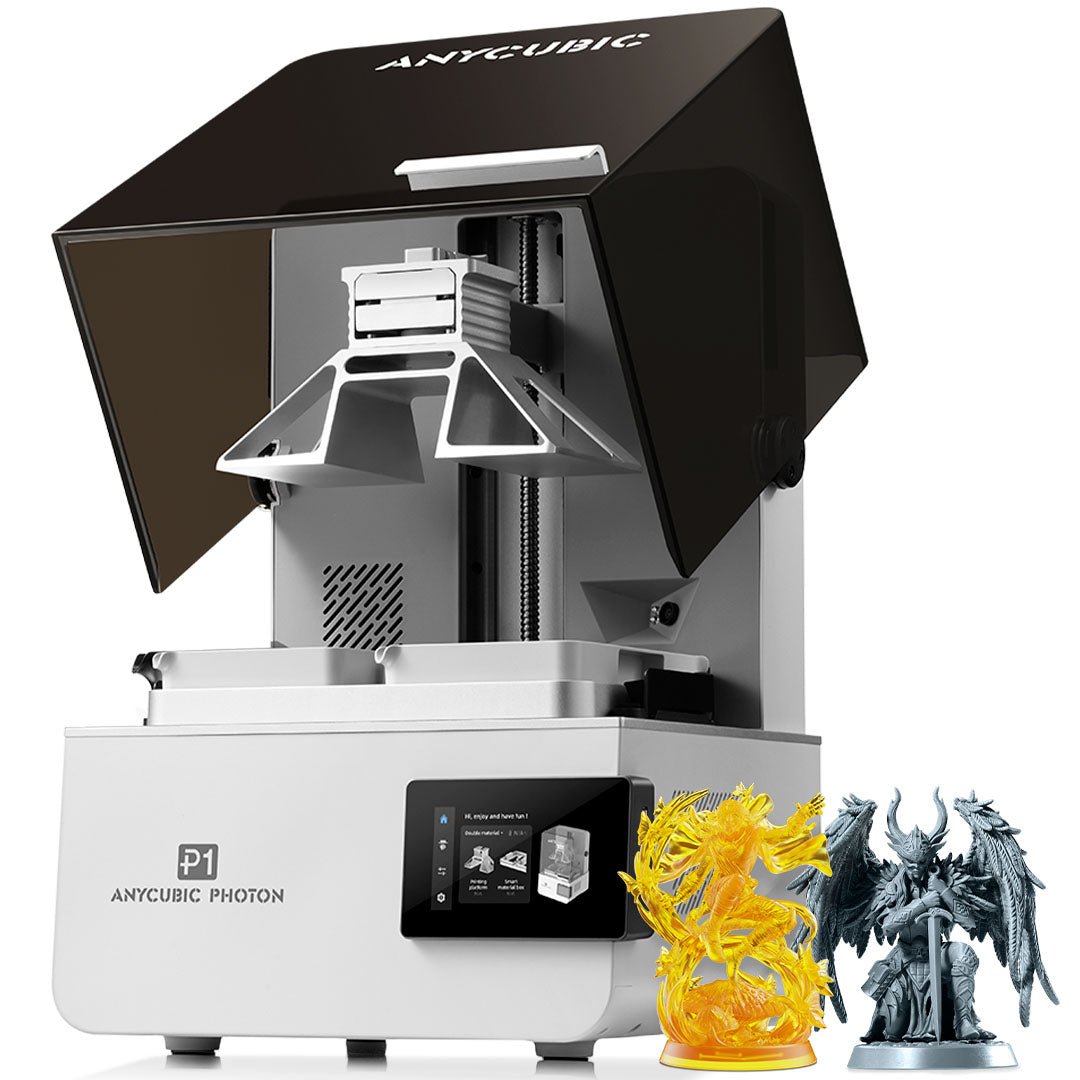

Anycubic Photon P1
rate_review Be the first to review
NPR
136,000
alarm
Promo Ends In: 00:00:00
Out of Stock
Quantity
compare_arrows
Compare with Resin 3D Printer
1
What the Pros Are Saying
Why choose Photon P1?
Wave Release Technology
Precision-Fitted Industrial-Grade Ball Screw

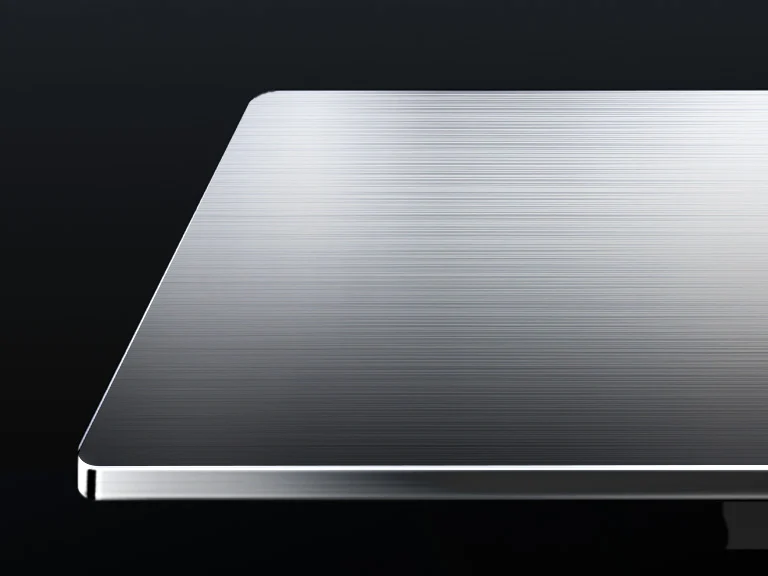

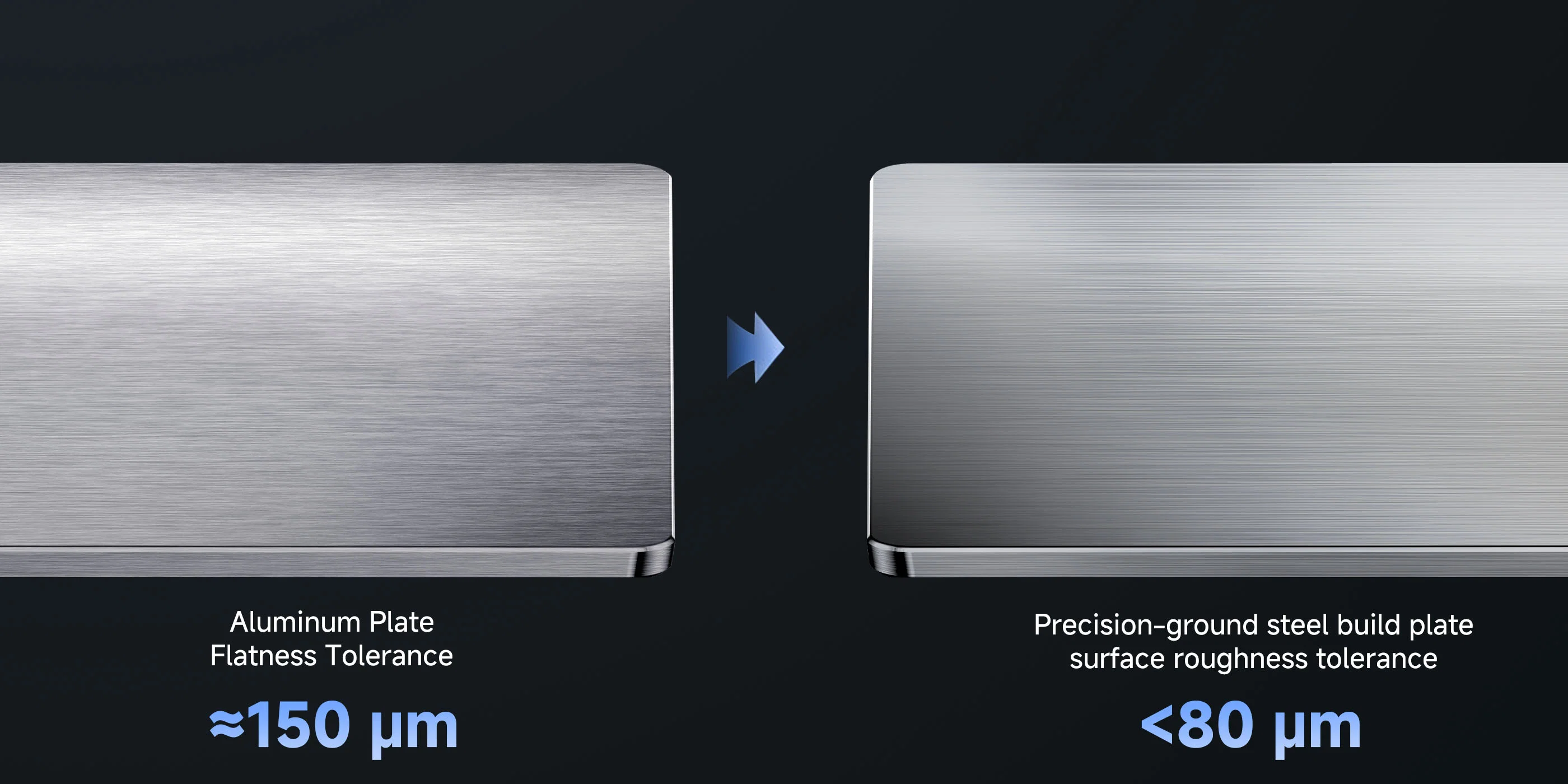

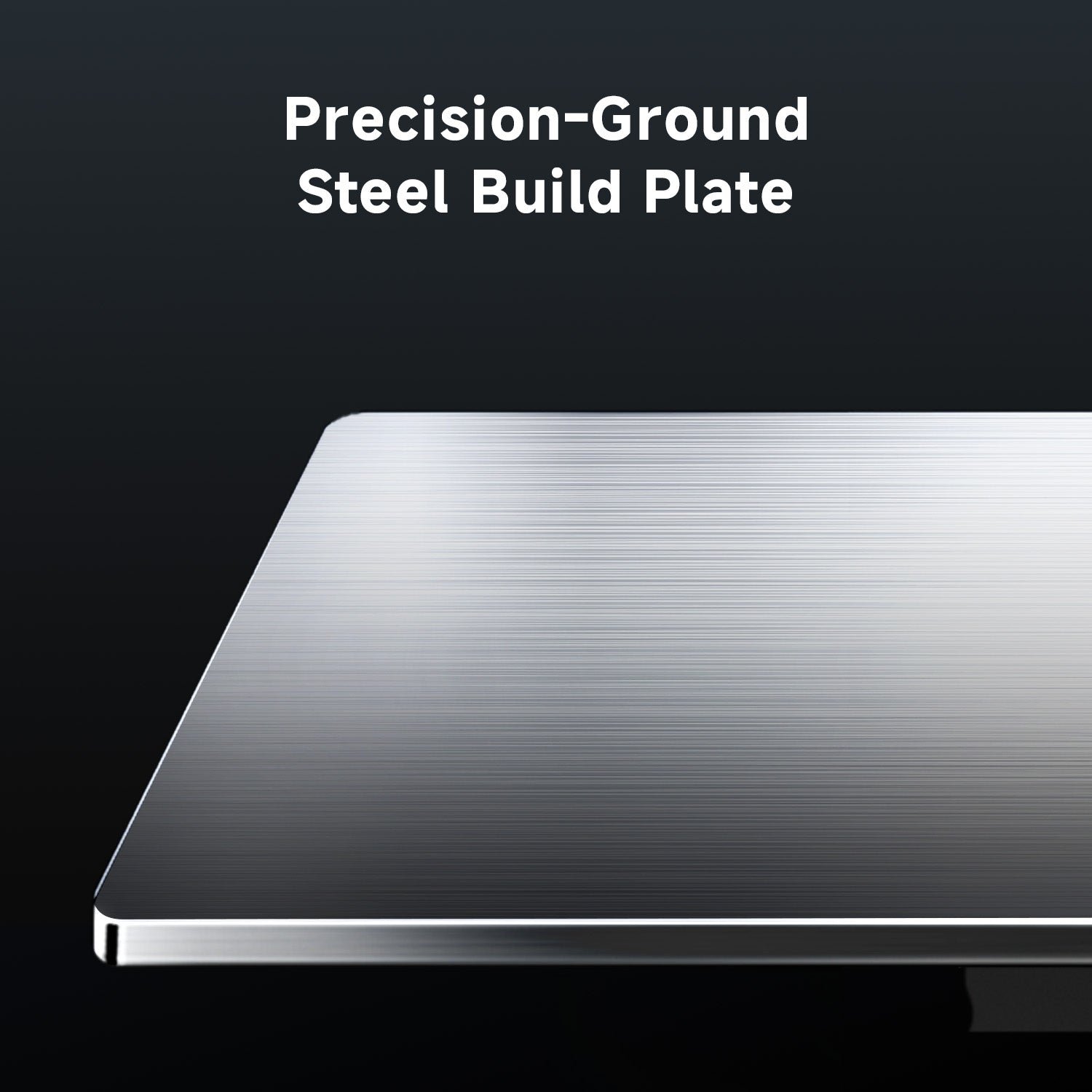

Precision-Ground Steel Build Plate

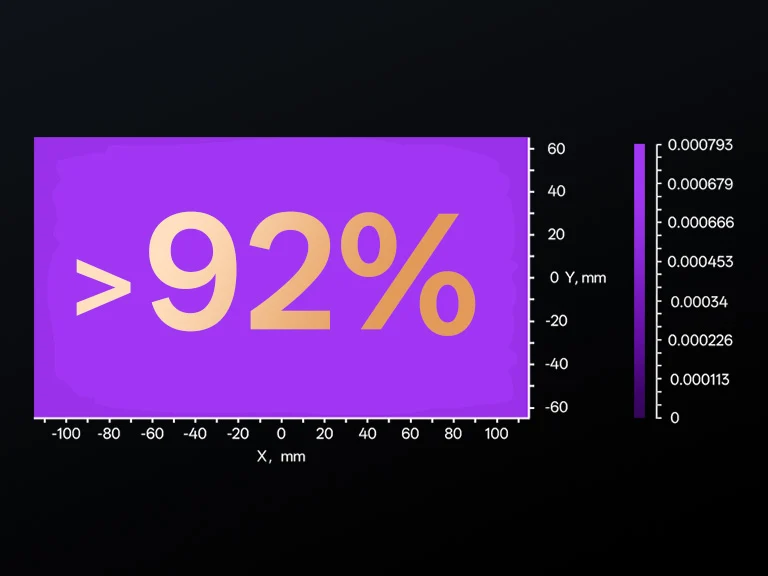

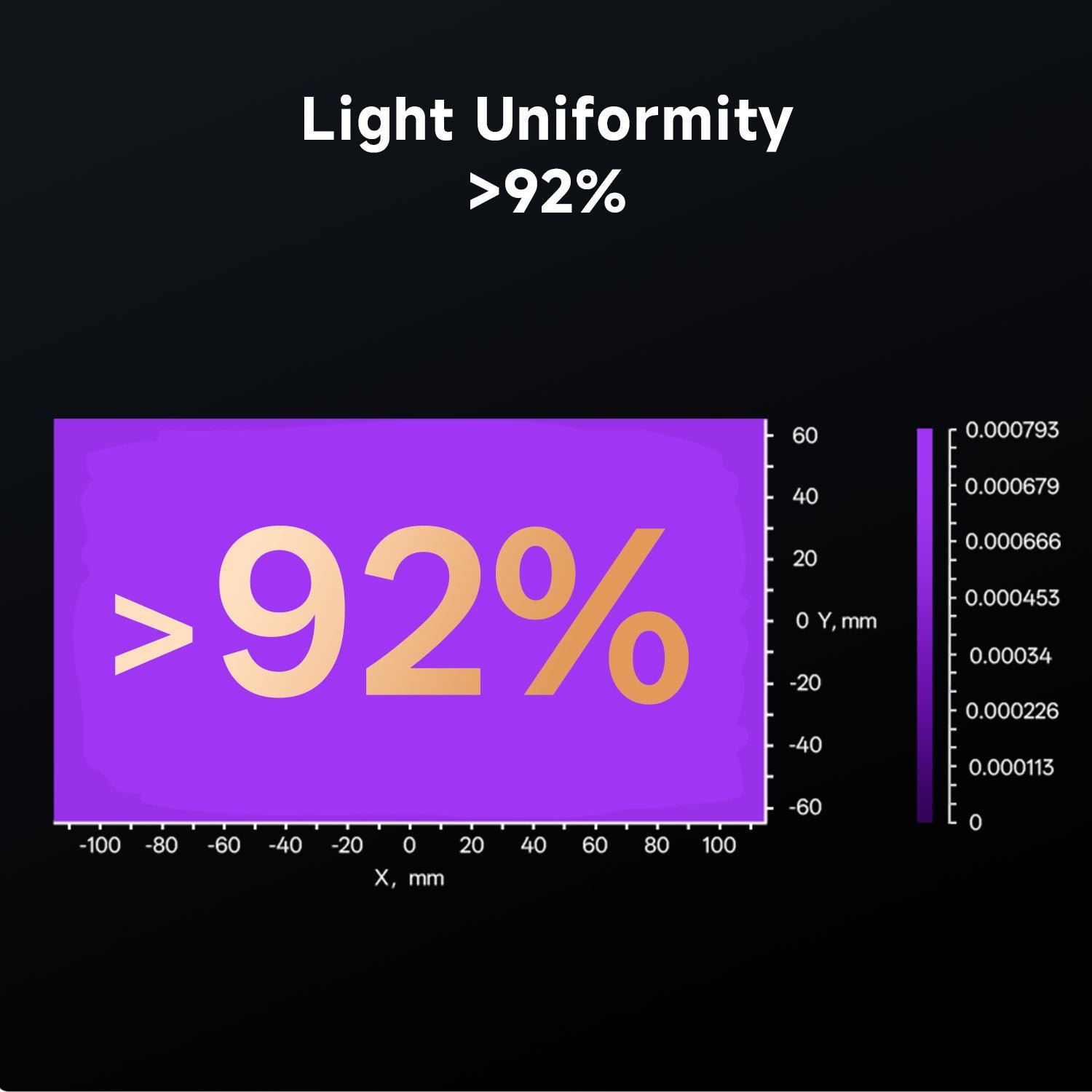

Light Uniformity ＞92%
Engineered for Ultra-Viscous 8000cps Resin

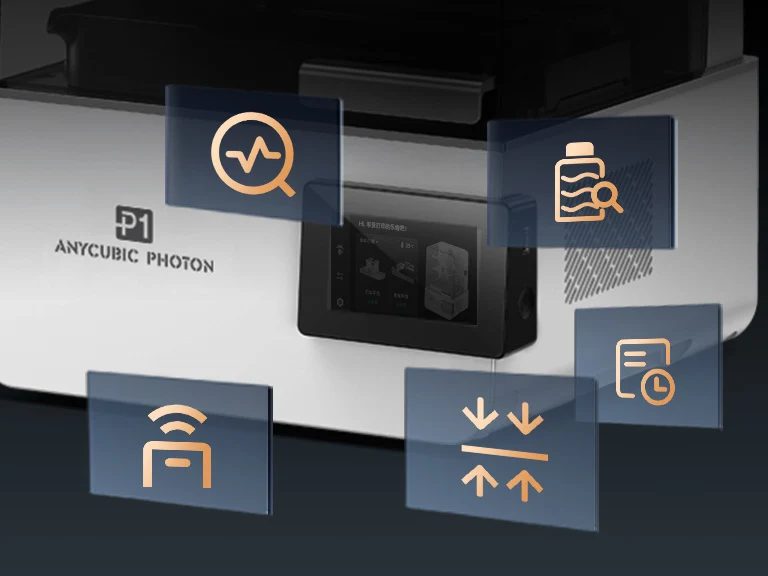

Intelligent Printing Assistant 3.0

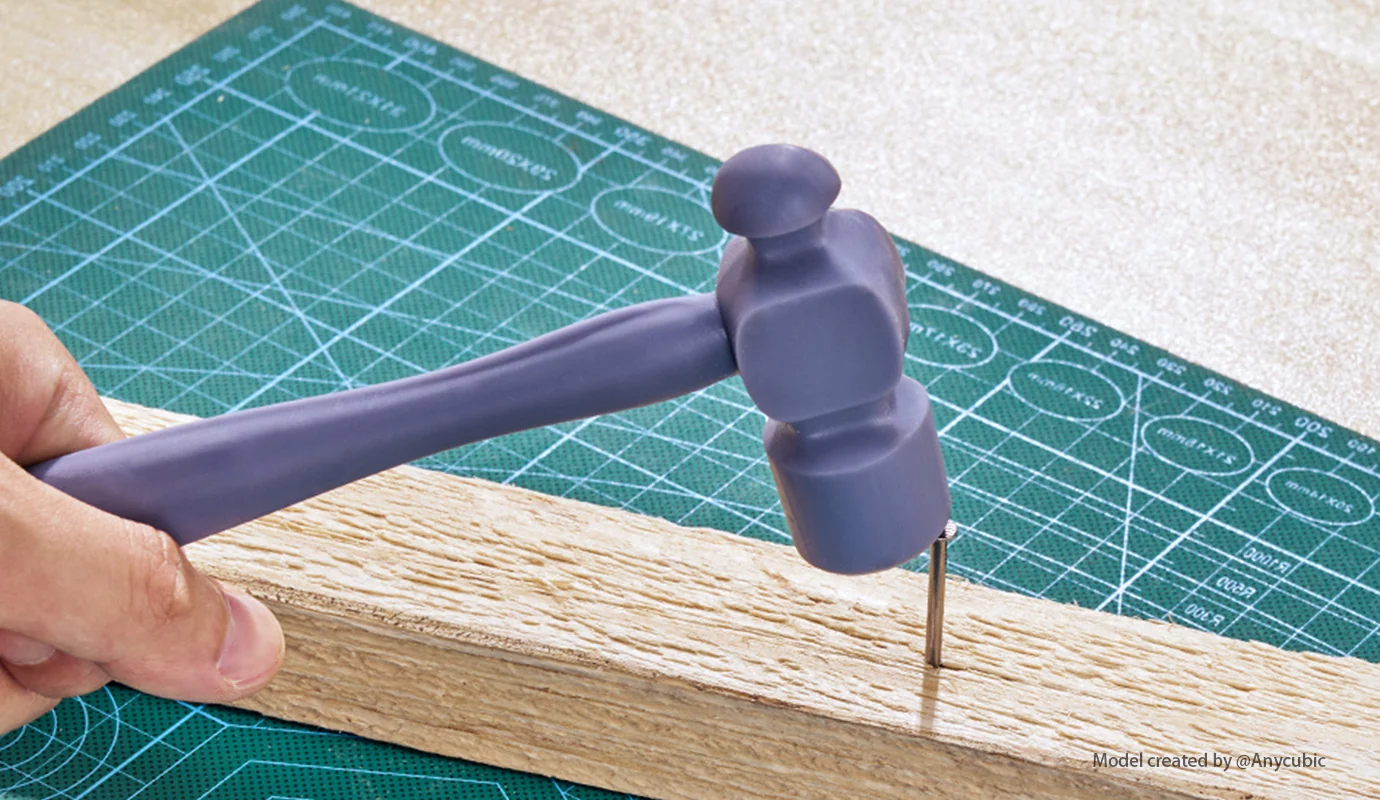

Prints from First Users

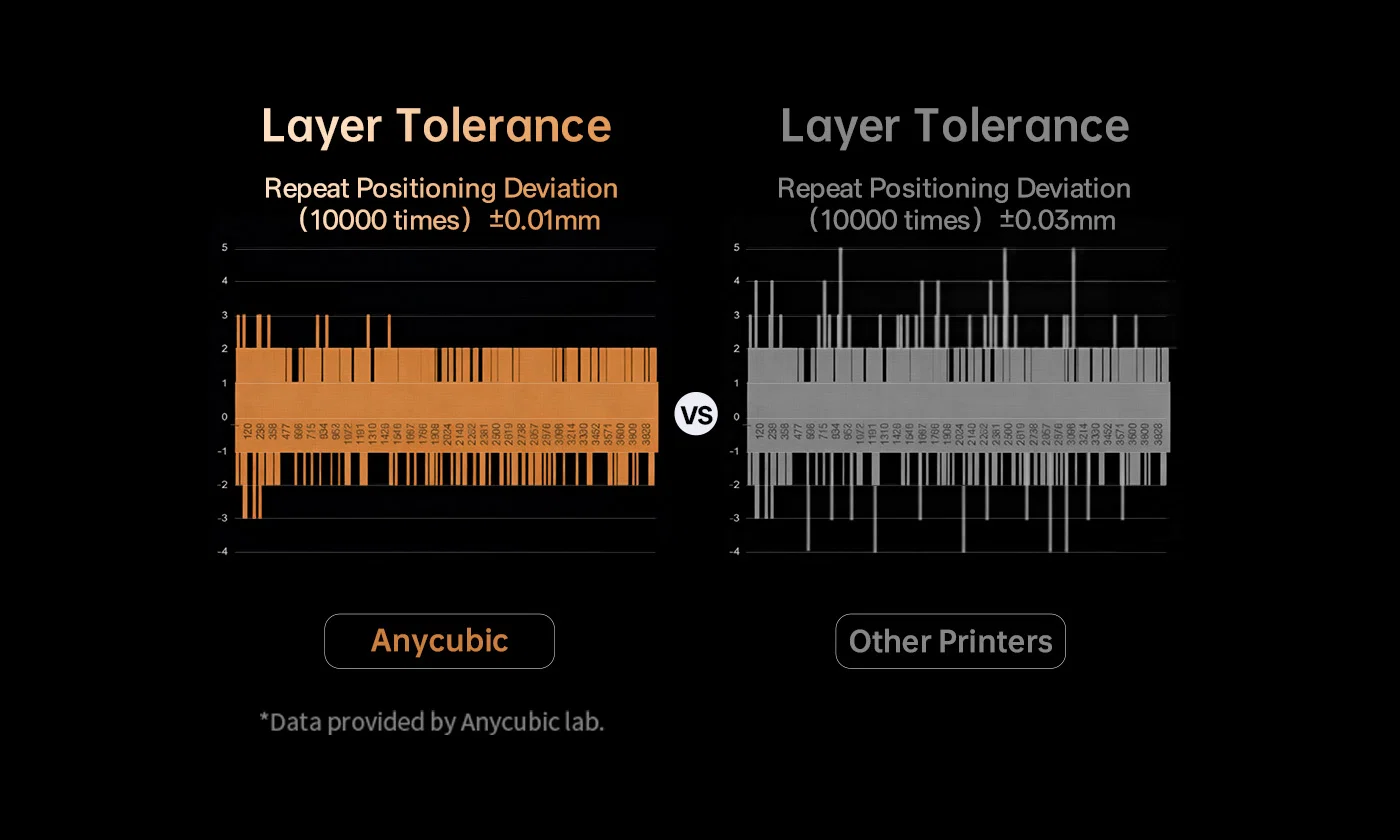

Tolerance Down to the Width of a Human Hair

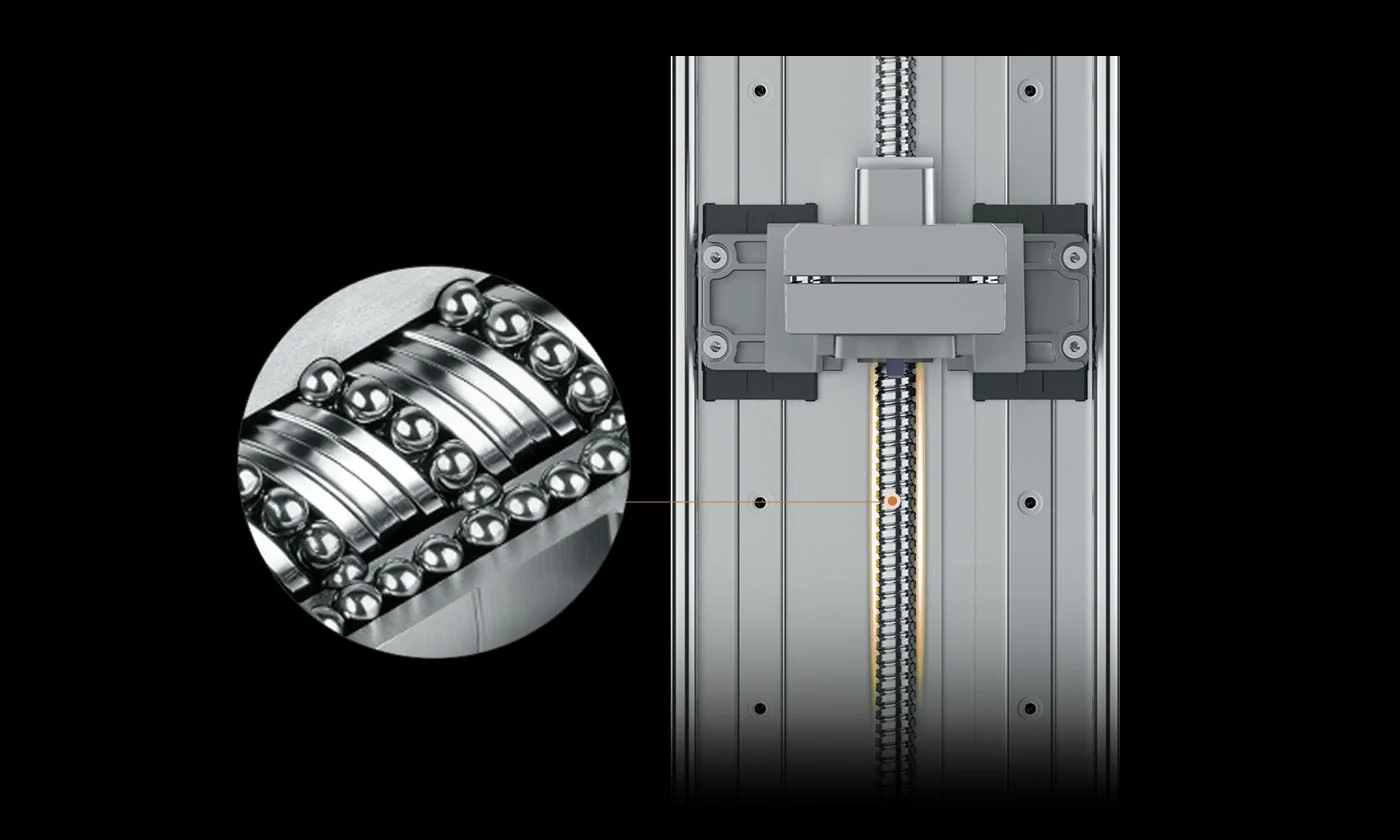

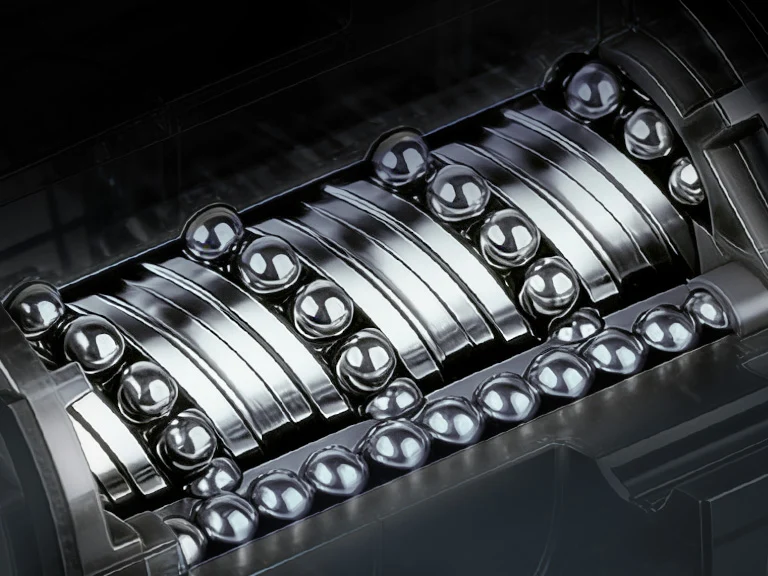

Precision-Fitted Industrial-Grade Ball Screw
Uniformed Light Exposure
The Source of Consistency: LighTurbo 4.0

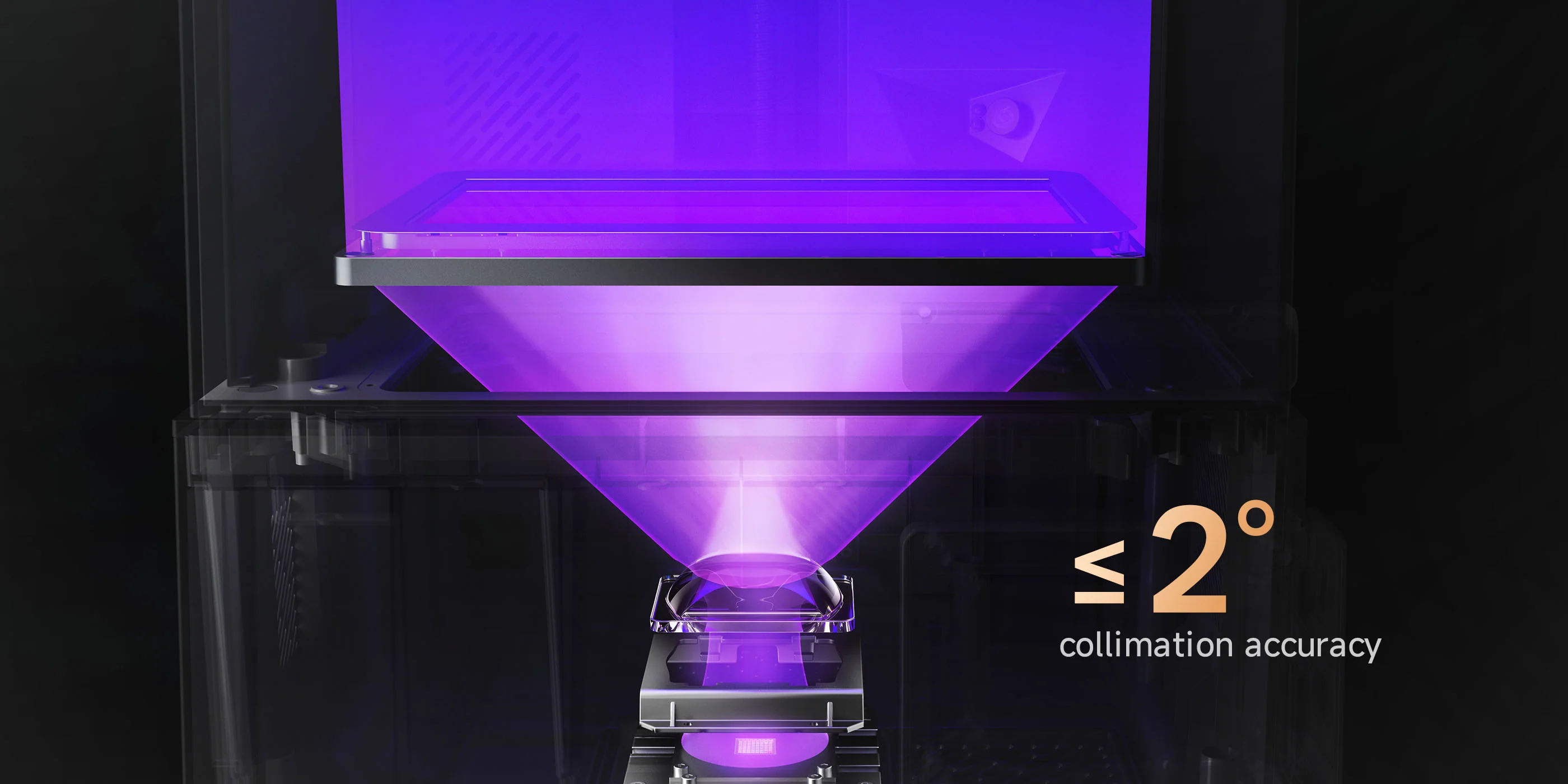

More Light PrecisionAspherical Fresnel Lens

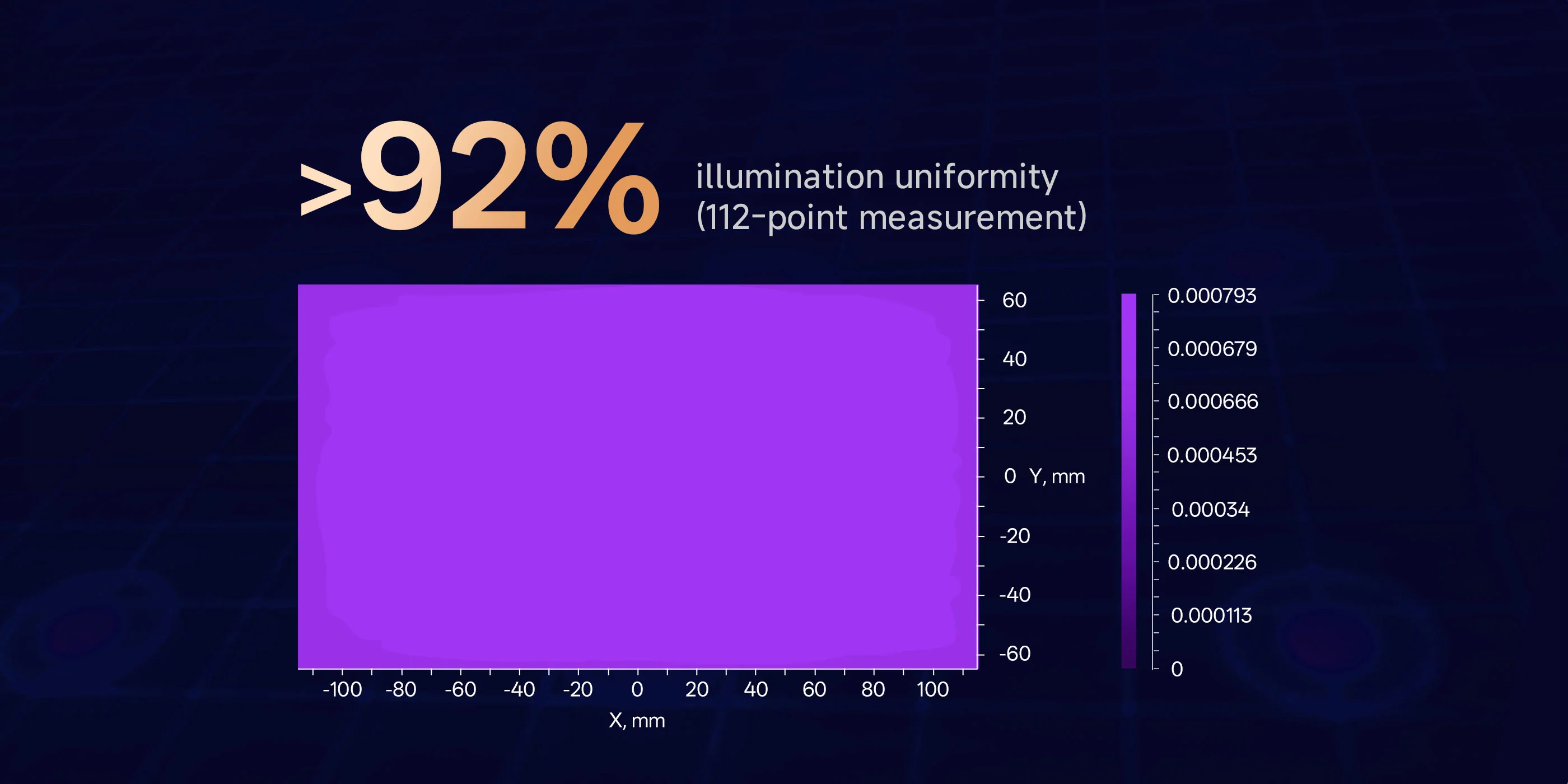

More Uniform Light DistributionFull-screen Rolling Calibration

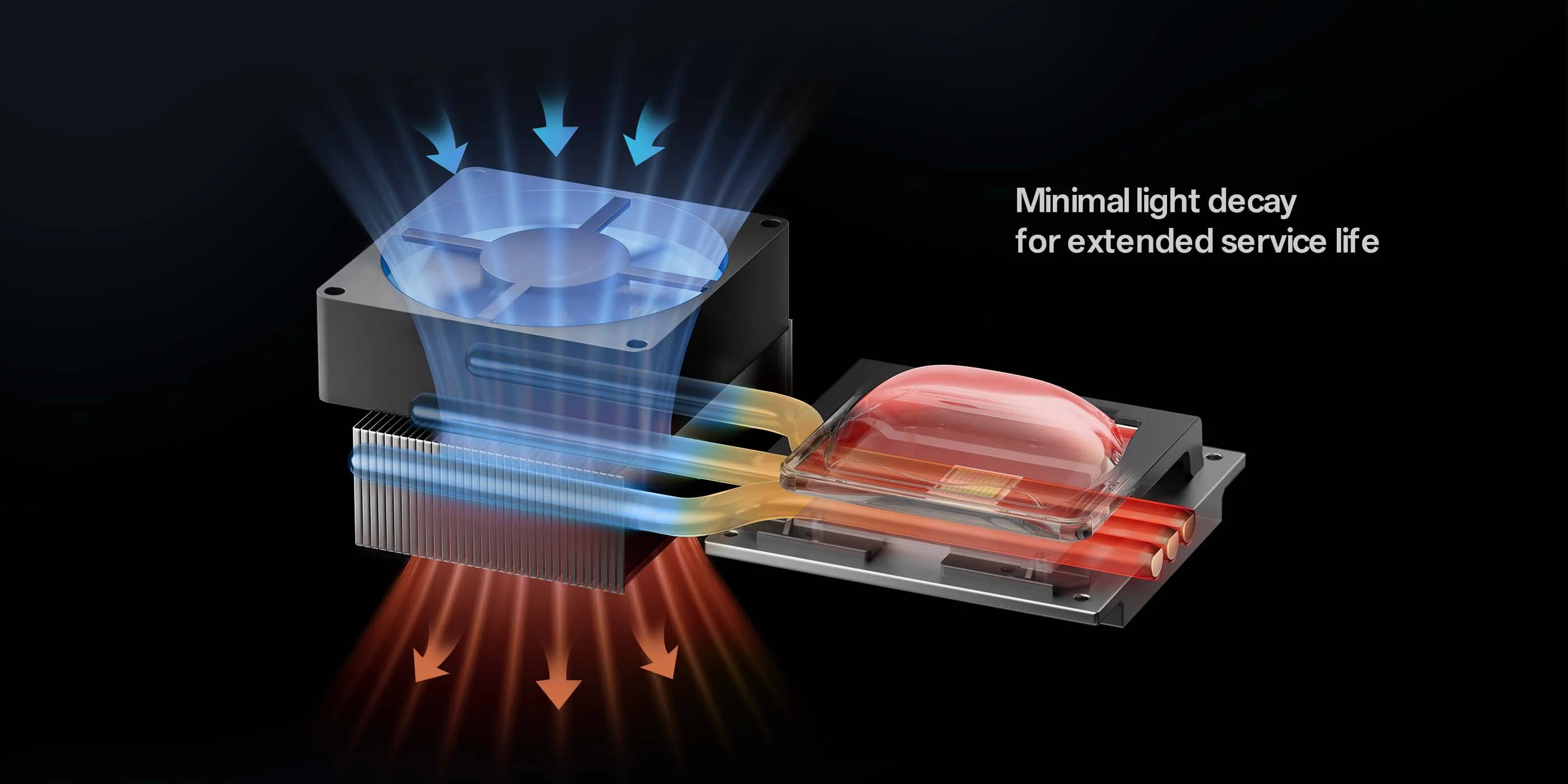

More Stable Light Output8mm Copper Cooling System

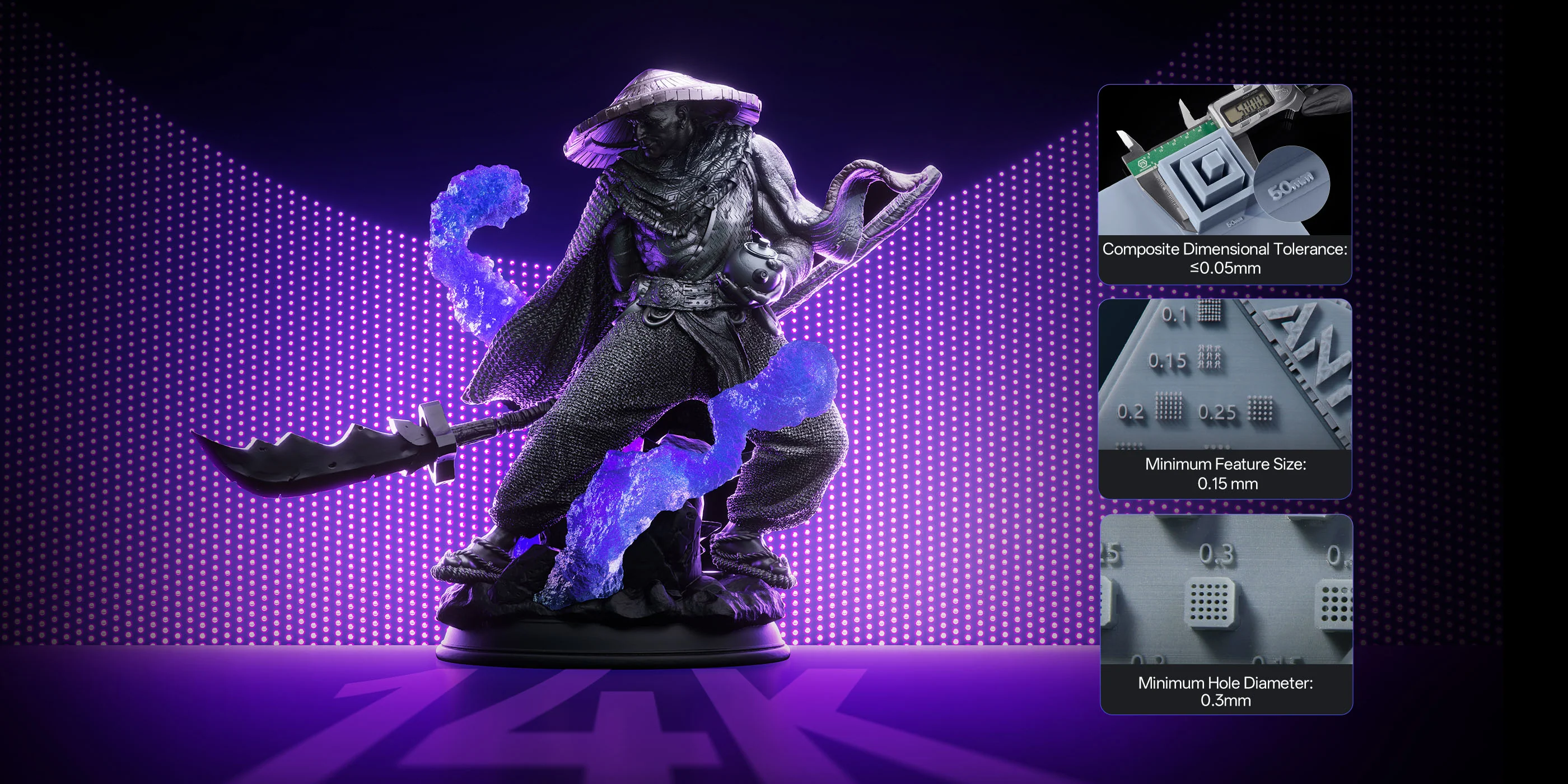

Once Blurry Edges are Now Highly Defined
14K High-Resolution Screen: 13312 × 5120 px
XY Pixel: 16.8 × 24.8 μm

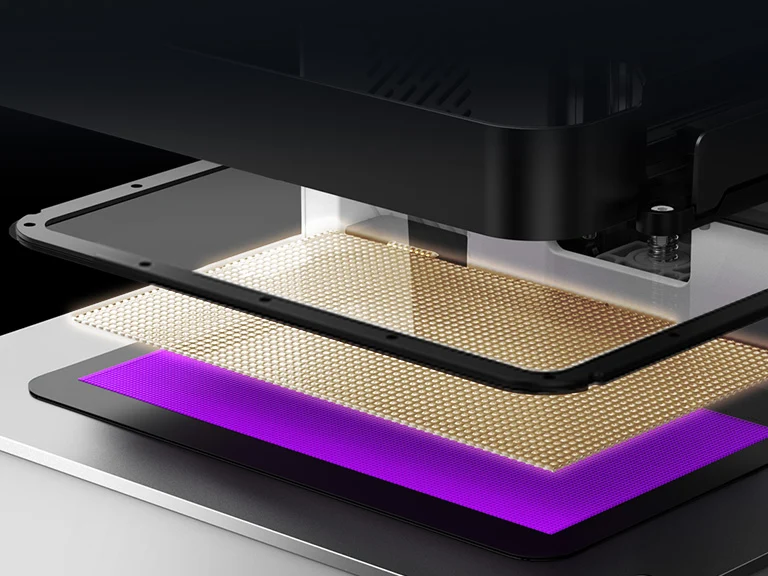

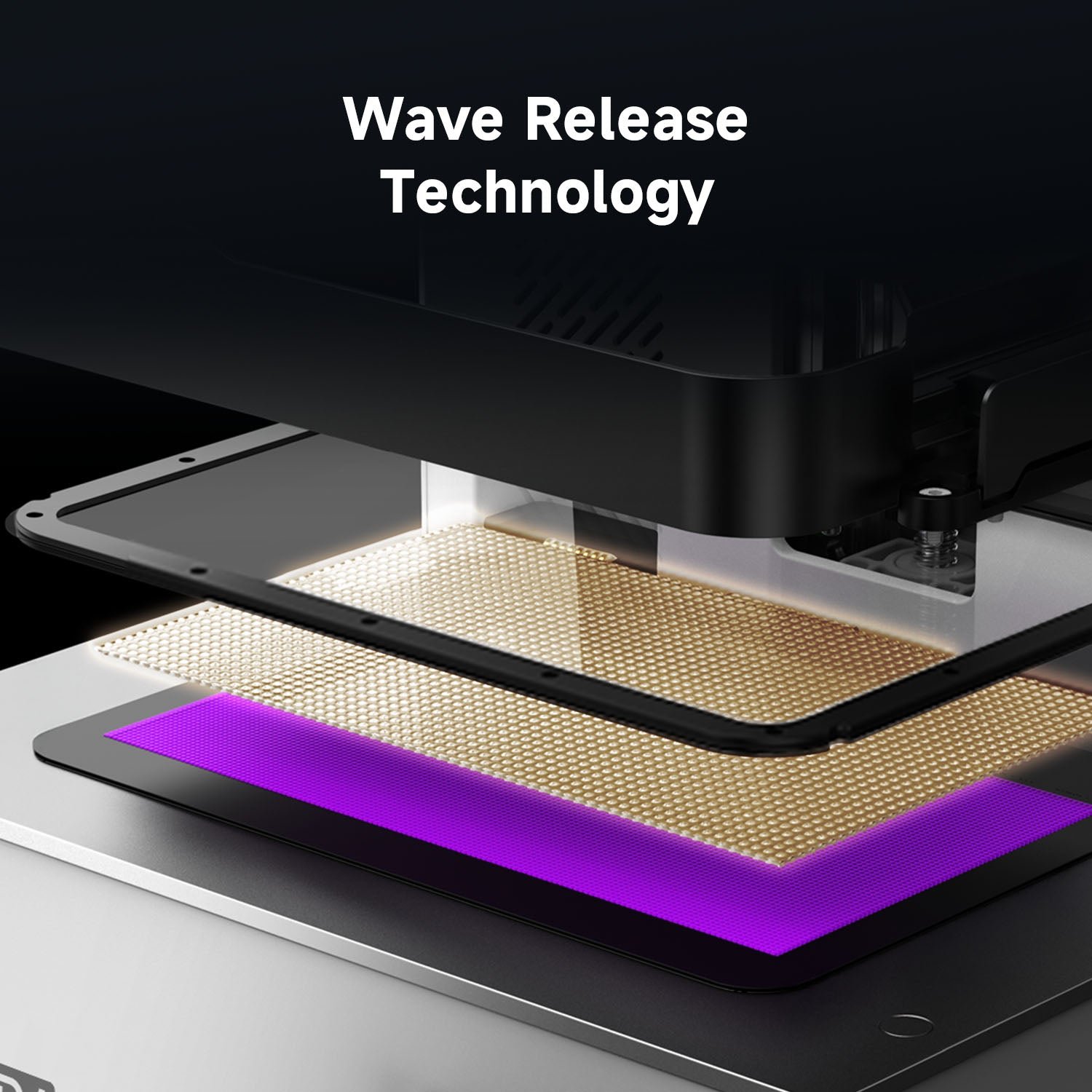

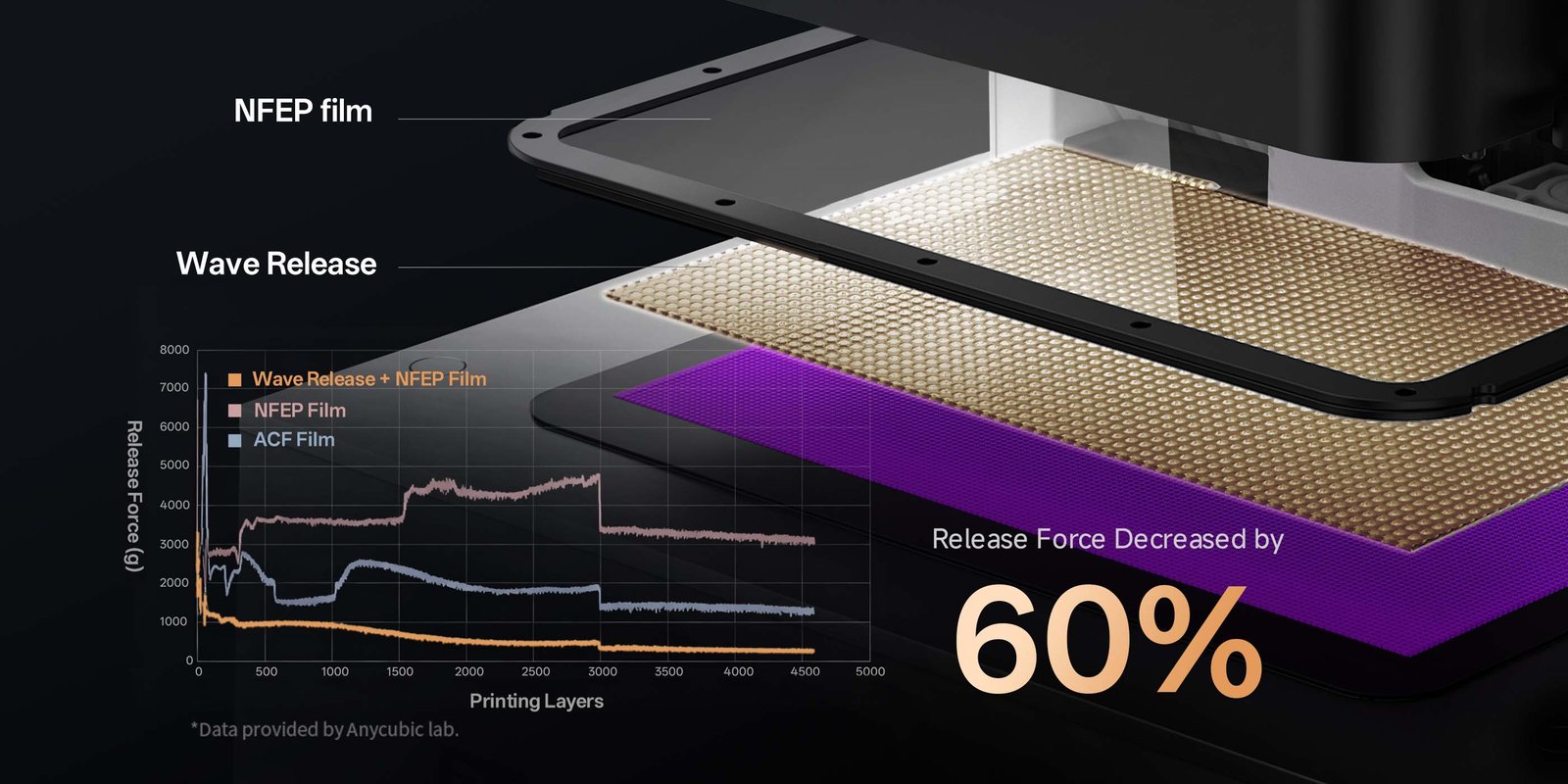

Easier Done than SaidWave Release Technology
The Wave Release Technology reduces release force by a massive 60% compared to traditional smooth-surface NFEP film, ensuring superior print quality and consistency.

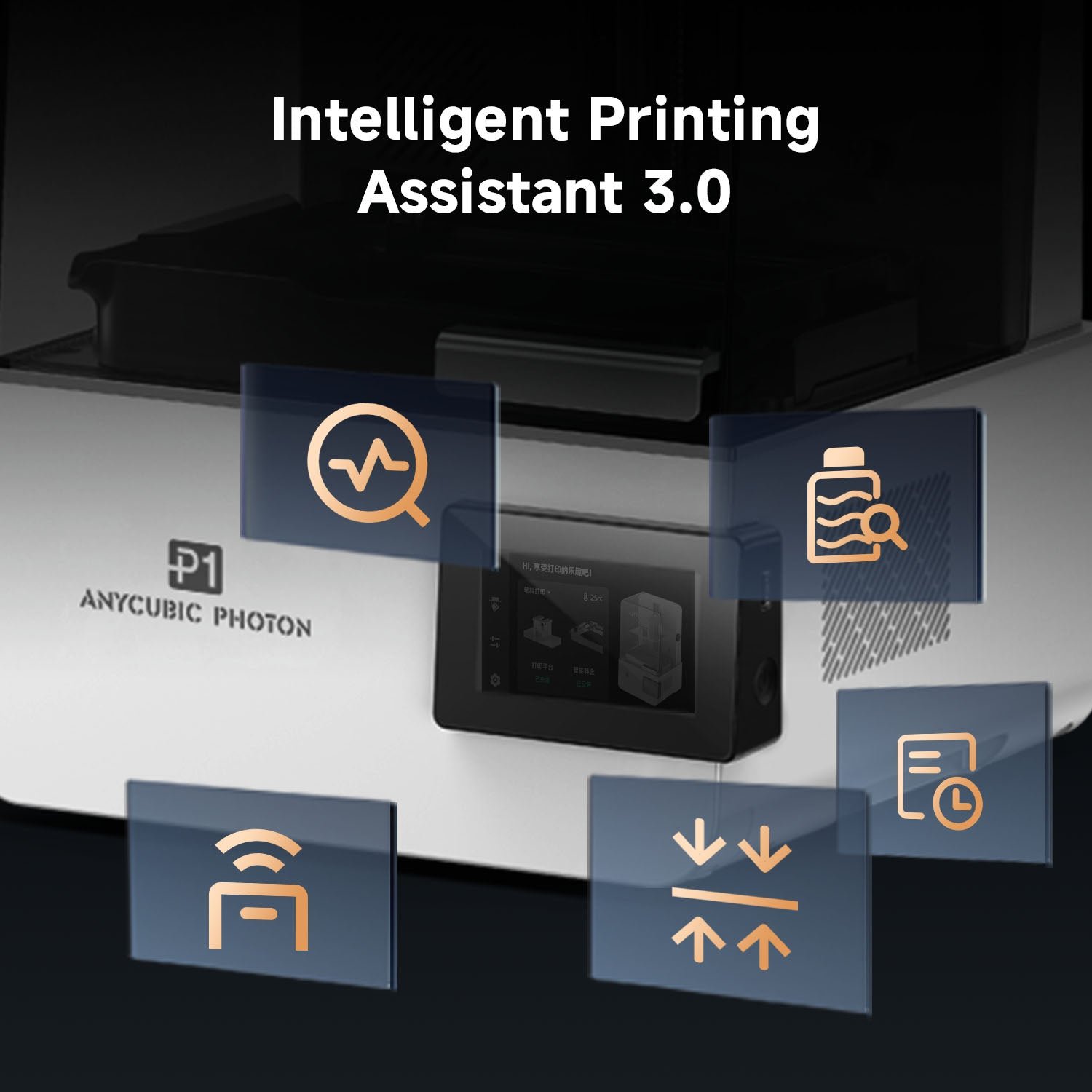

Intelligent Assistant 3.0 Press Start & Leave the Rest to the Assistant

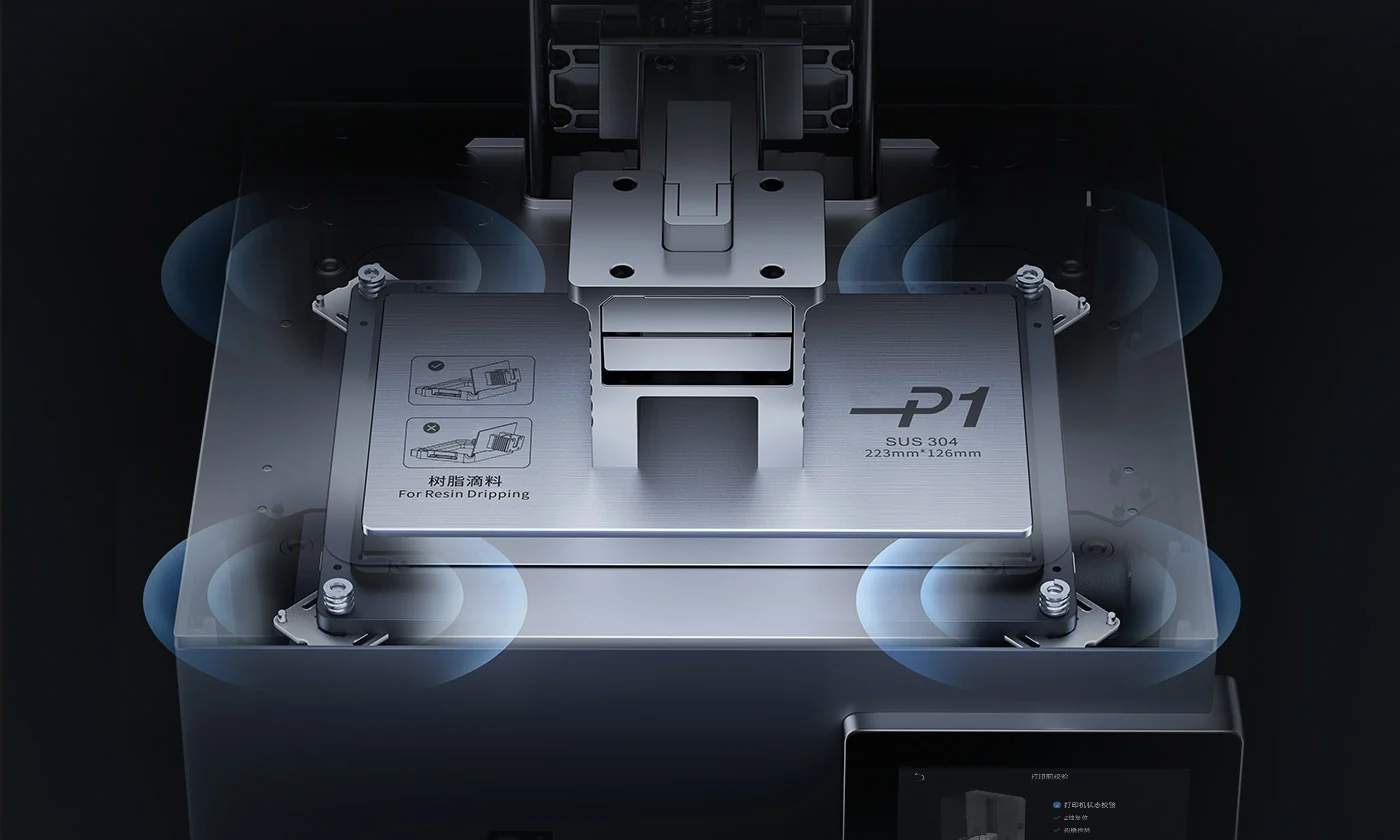

Factory Calibration
Prints right out of the box
Prints right out of the box

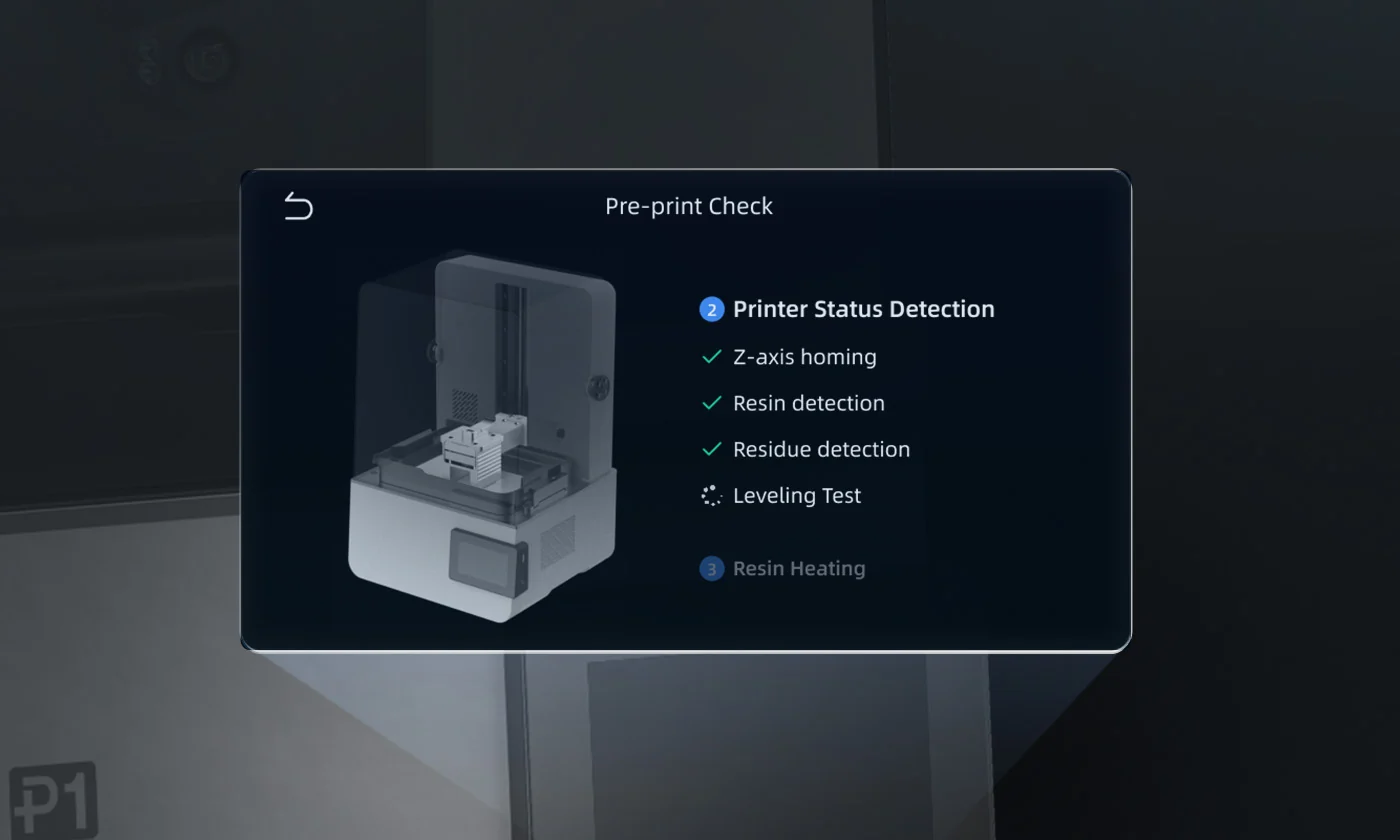

Auto-Leveling Self-Check
Automatically performs bed leveling self-check before printing to ensure optimal platform readiness.
Automatically performs bed leveling self-check before printing to ensure optimal platform readiness.

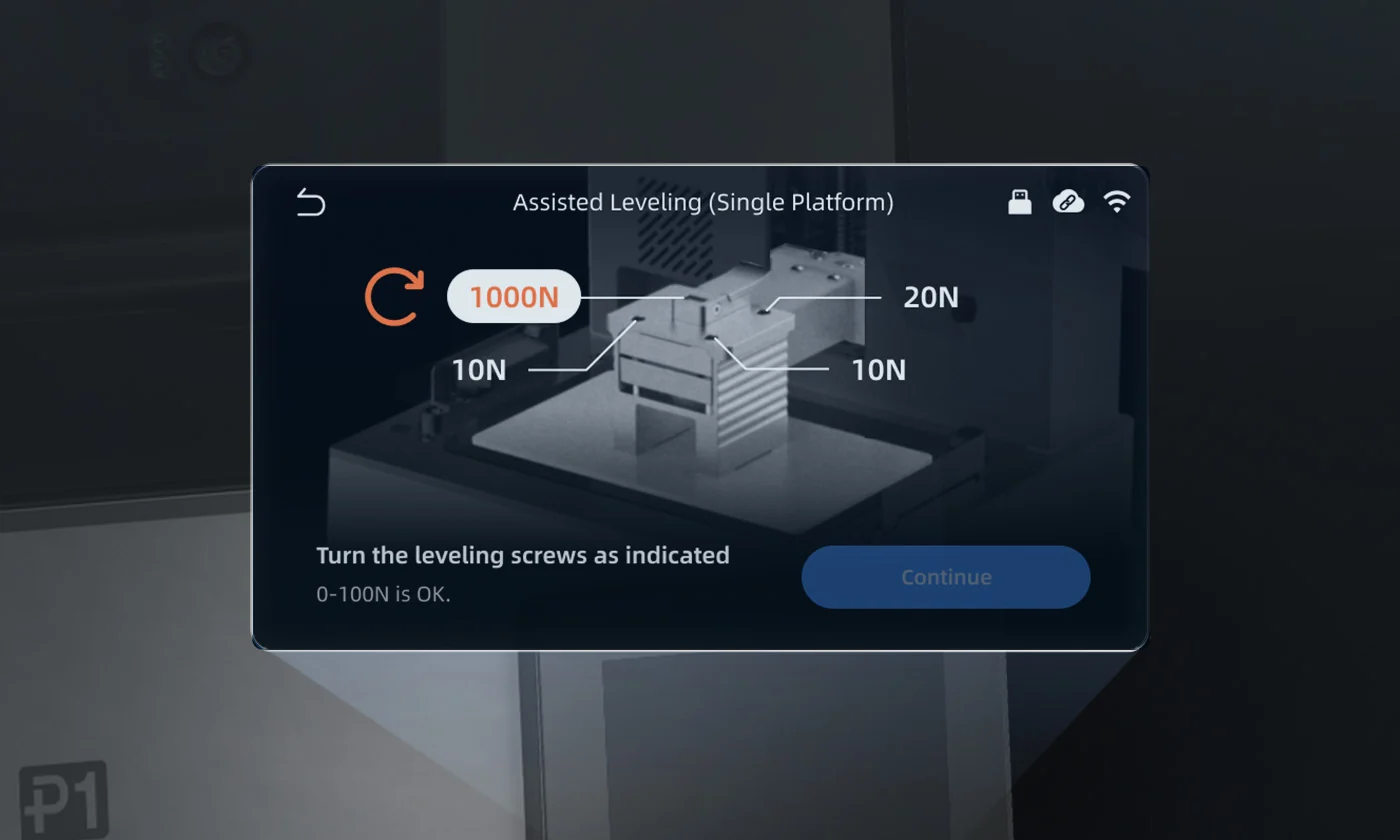

Leveling-Assist
Displays real-time force values at four corners for fine-tuning.
Displays real-time force values at four corners for fine-tuning.
Intelligent Dynamic Adjustment, Fast & Steady Wins the Race

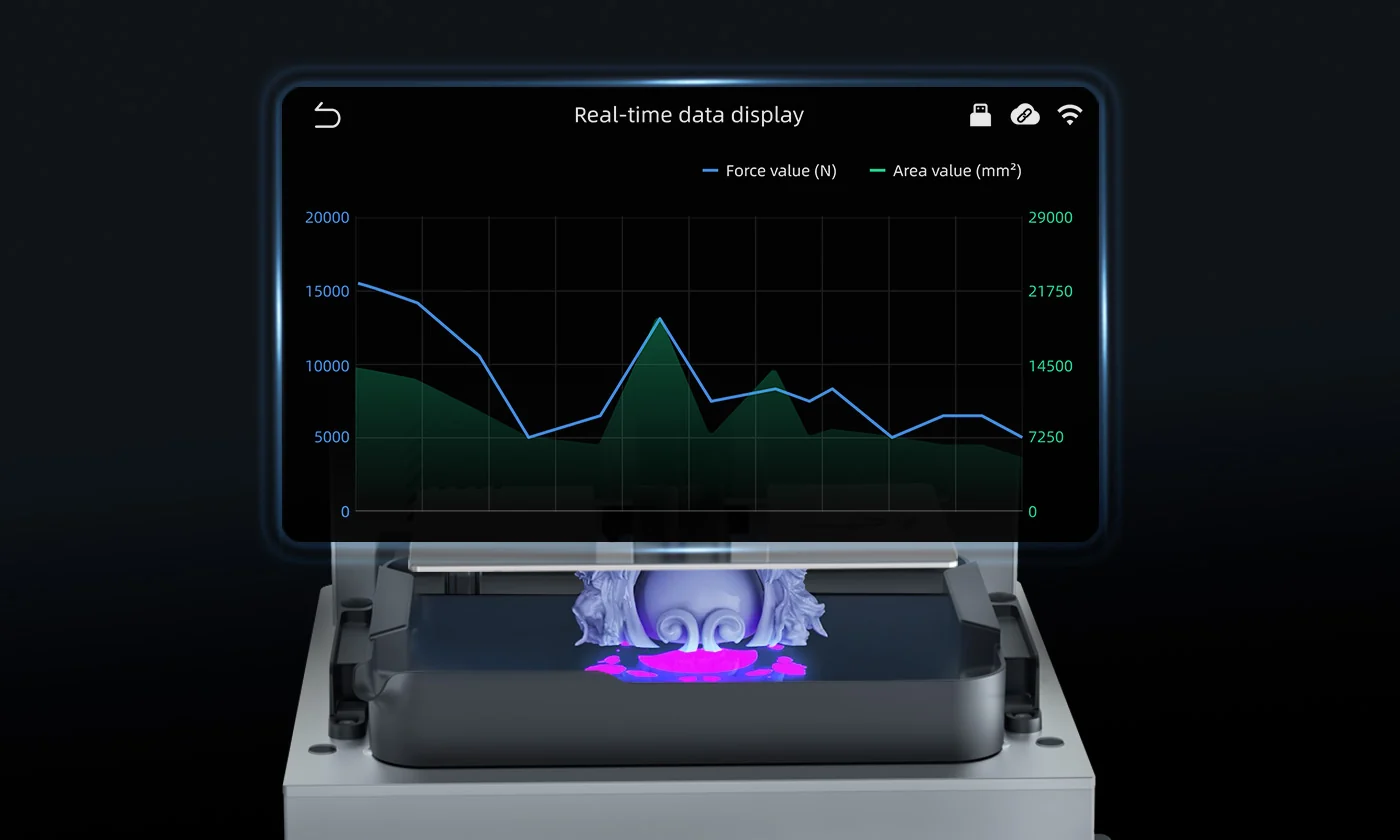

Dynamic Release 3.0
Monitors real-time layer separation forces to modulate the lift height and speed. This ensures reliable release with every layer, significantly boosting both print success rate and quality.
Light-Off Compensation 3.0
Calculates resin flow-back rate and dynamically adjusts the light-off duration to precisely prepare each layer for exposure, ensuring optimal speed and efficiency.

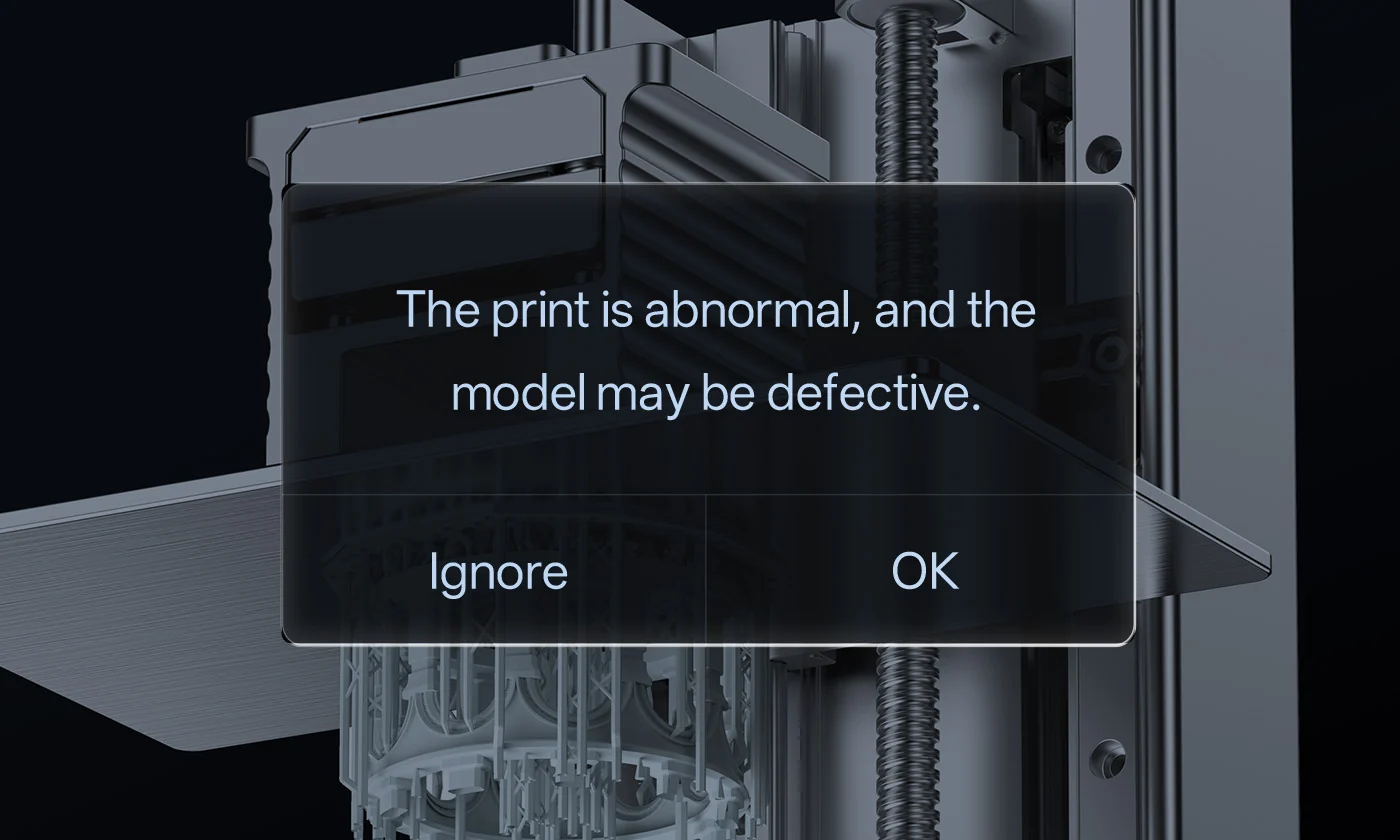

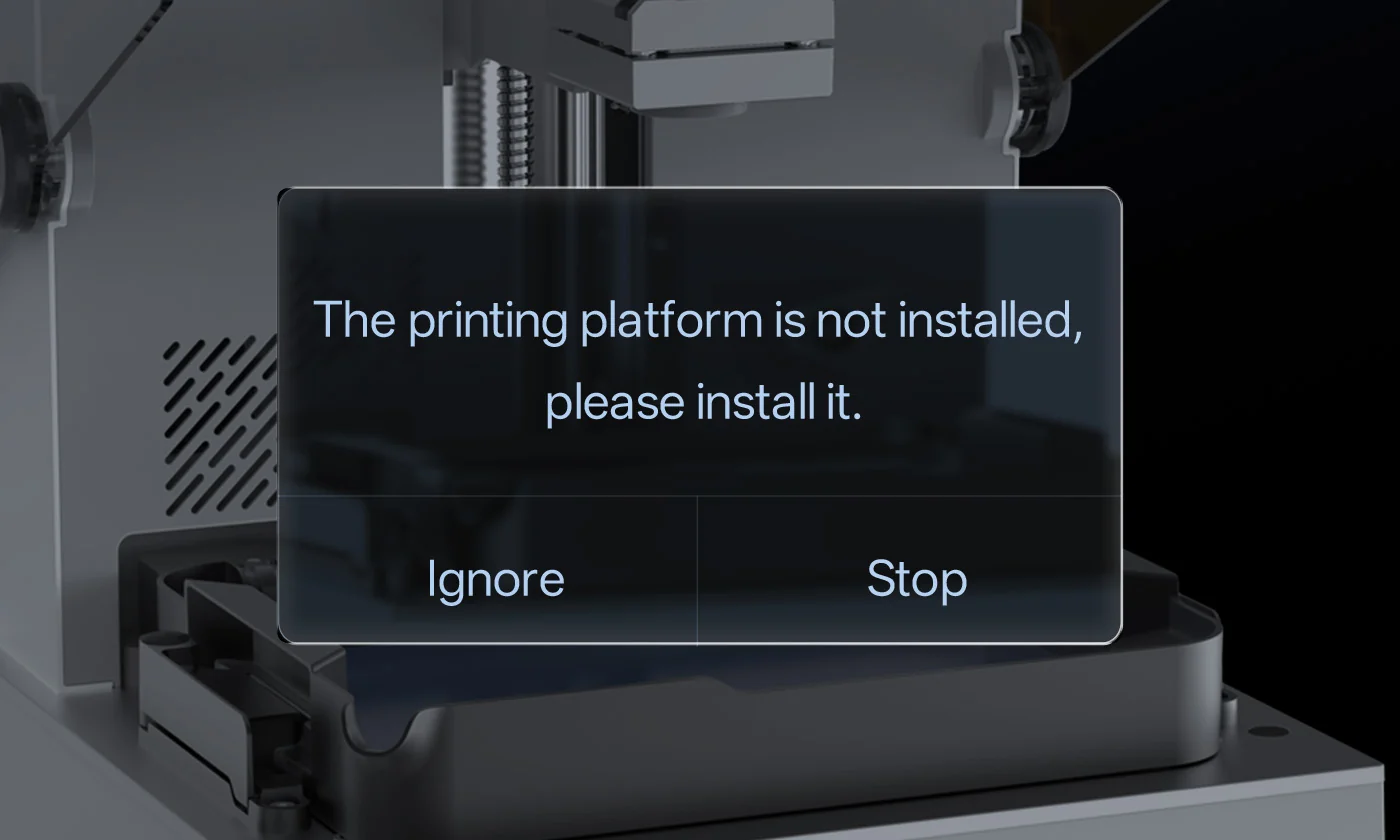

Build Plate Installation Inspection, AI Detection
Build Plate Installation Inspection, AI Detection

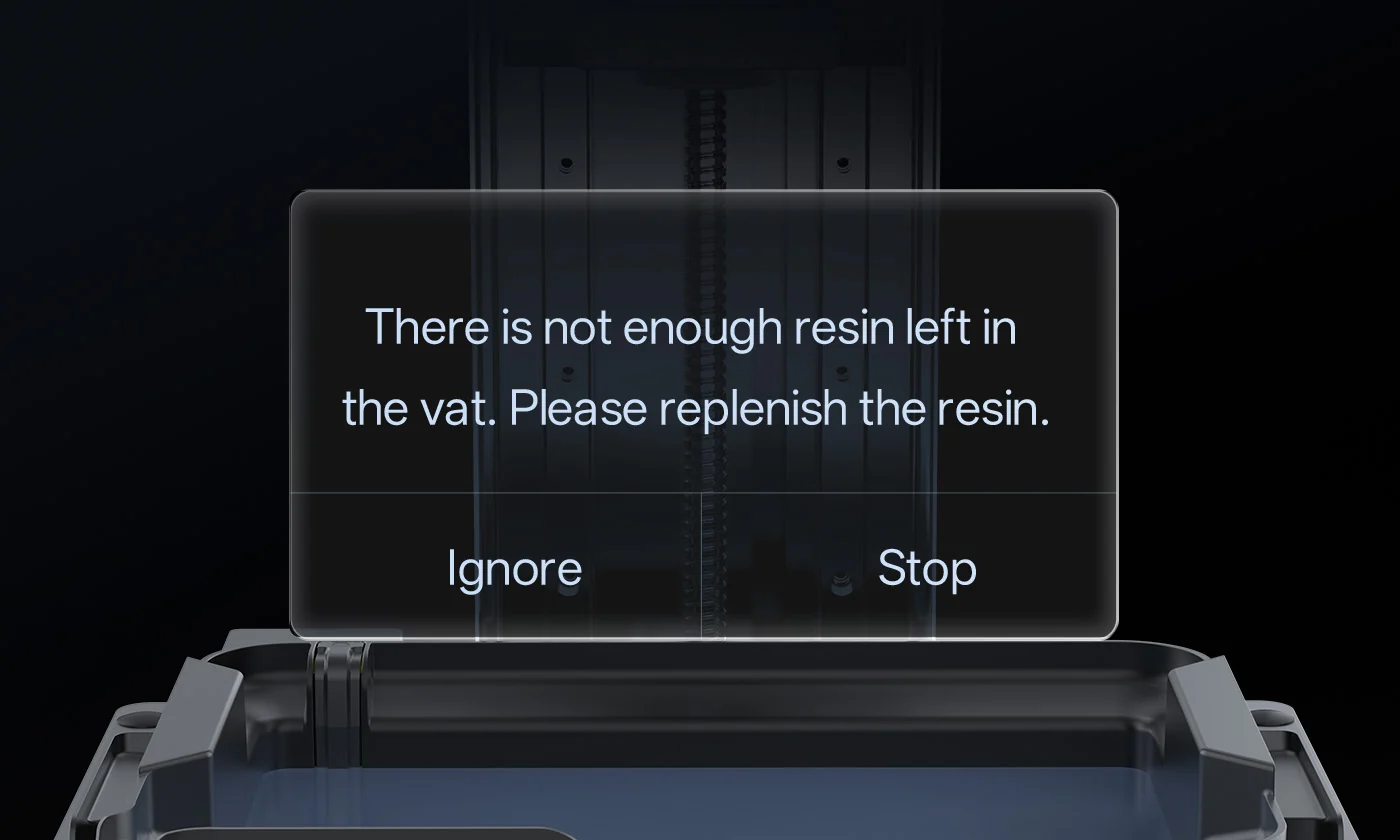

Resin Level Inspection

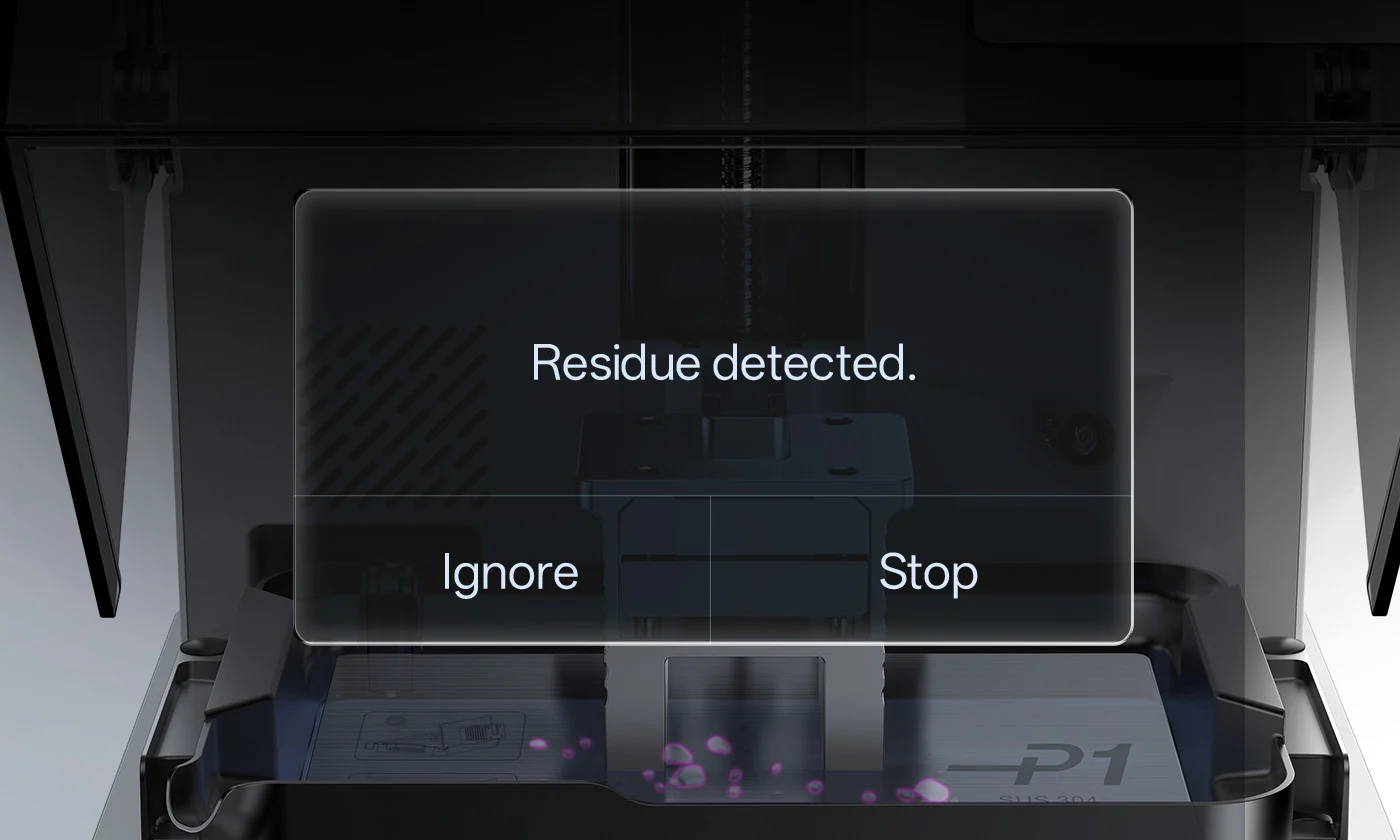

Residue Inspection

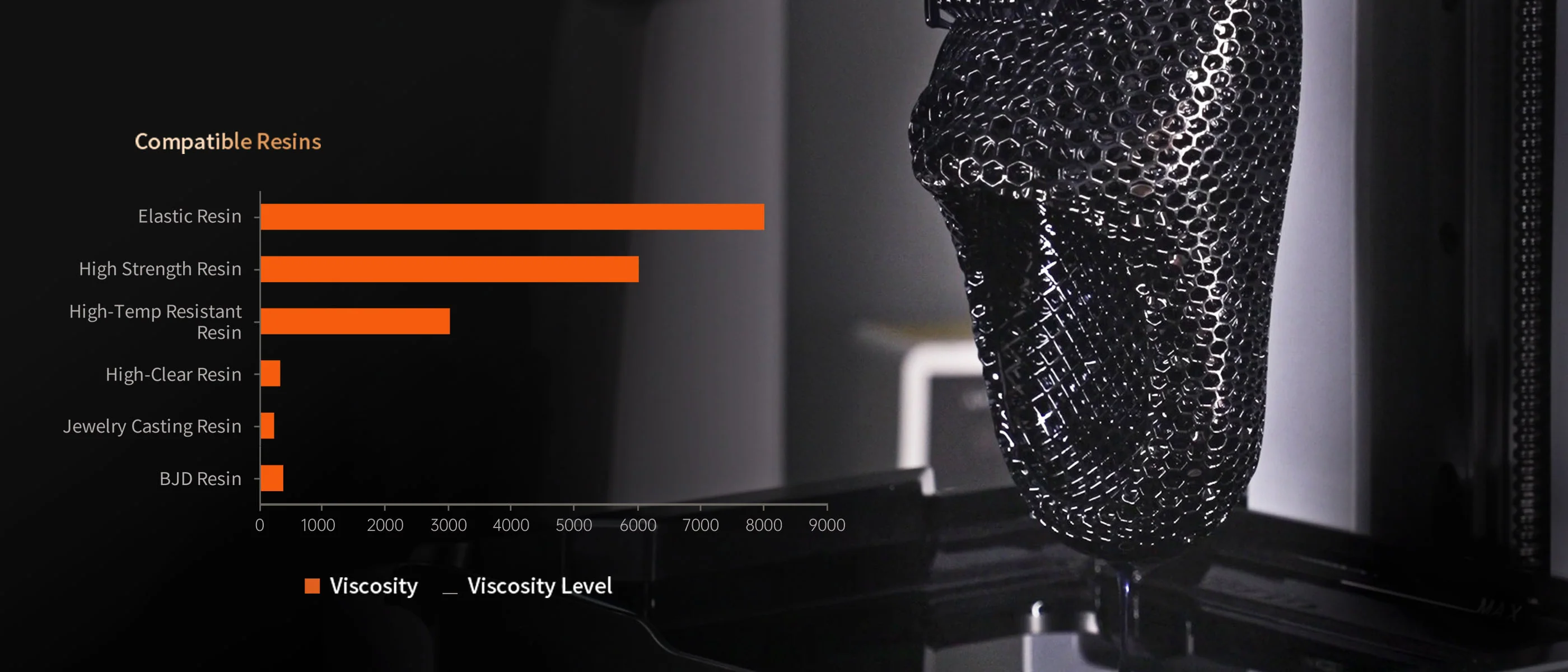

Built to Handle Ultra-Viscous 8000cps Resin

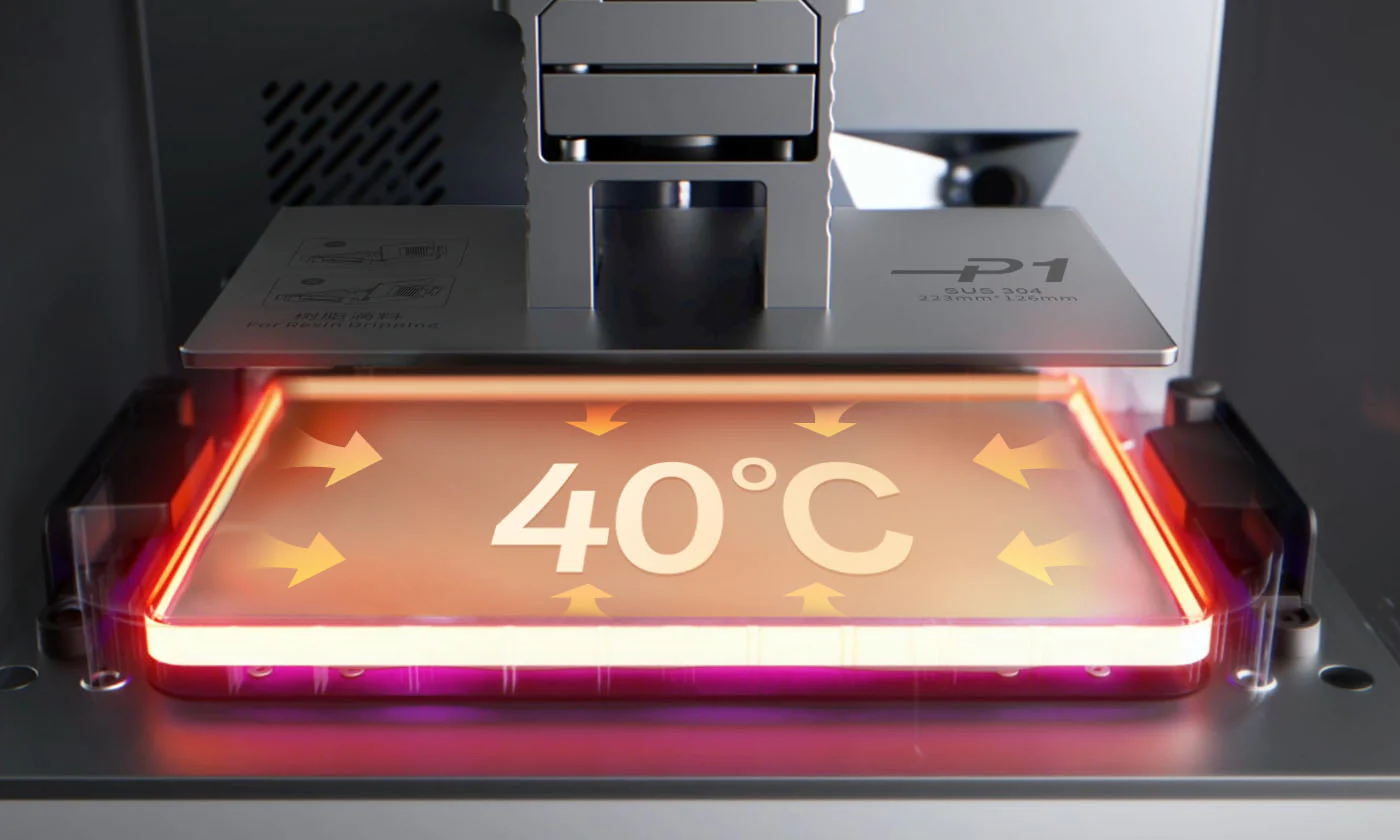

1000ml Thermal-Controlled Resin Vat
The integrated thermal control system maintains a constant resin temperature of up to 40°C. By optimizing resin flow and viscosity, the P1 ensures consistent performance and success rates.

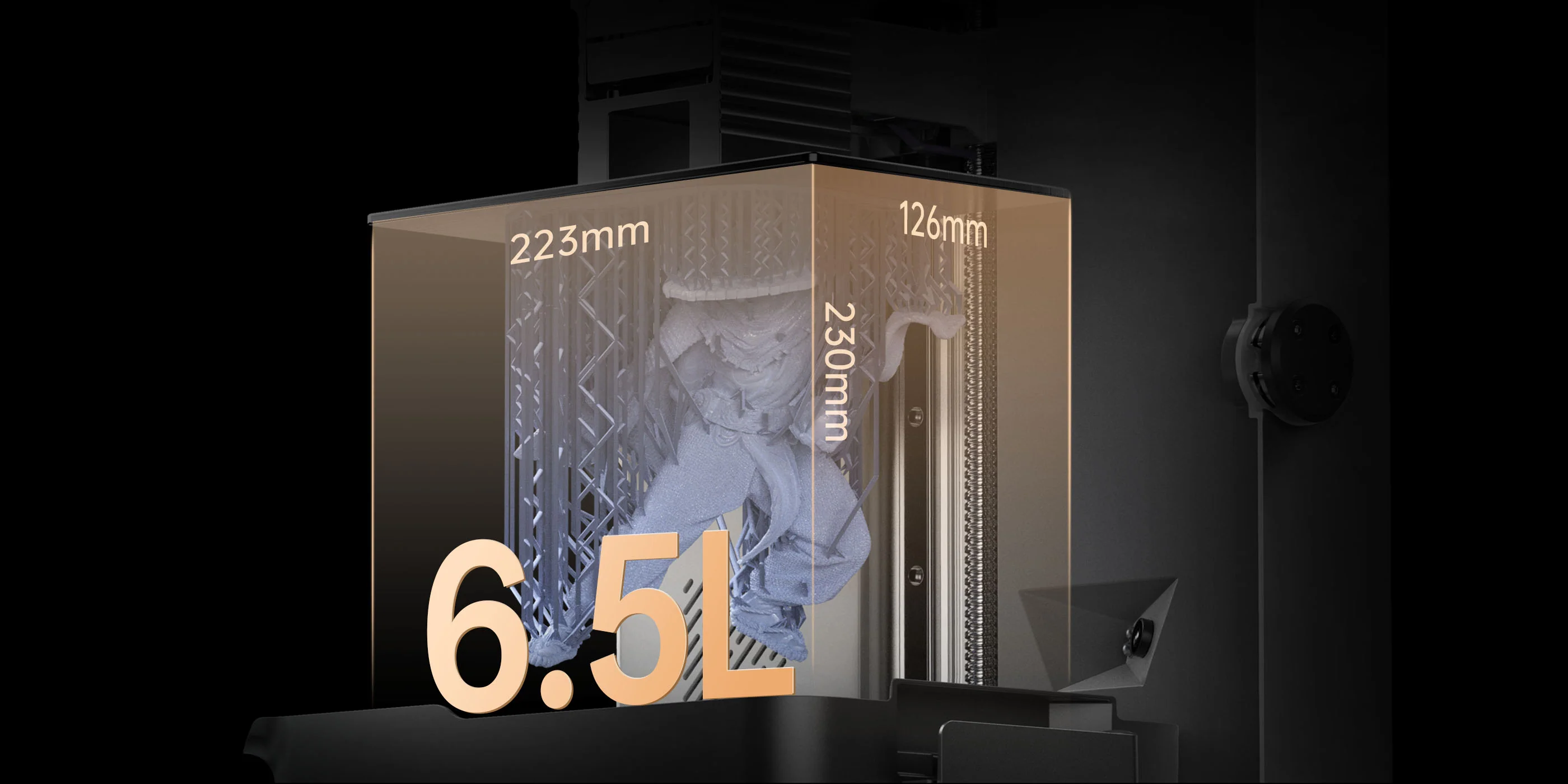

6.5L Build Volume, Build Whatever You Want

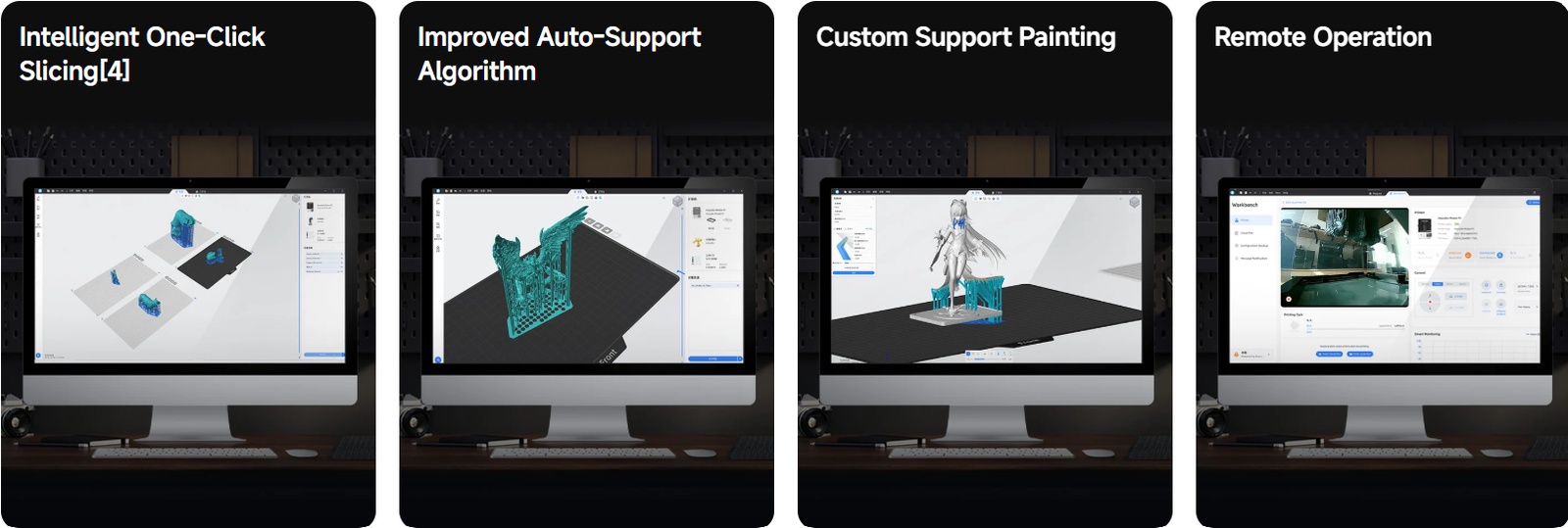

The All-New Photon Workshop 4.0
Dual-Network Connectivity
Makeronline, One of the Biggest Online Model Libraries
.Massive Model Library
.Monetize Your Designs
.Global Knowledge Exchange
.AC Wiki Troubleshooting Expert
Technical Specifications
Detailed hardware & material parameters
| Item | Specification | |
|---|---|---|
| General | Brand | ANYCUBIC |
| Category | Resin 3D Printer | |
| Core Printing Performance | Printing Volume | 223*126*230 mm³ (6.5 L) |
| Printing Speed | 25-35 mm/h (0.05 mm layer, Std Resin) | |
| Layer Height Range | 0.02-0.15 mm | |
| X/Y Axis Resolution | 16.8 × 24.8 μm | |
| Light Source | COB + Fresnel + Mask | |
| Light Intensity | 5000 μW/cm² | |
| Material Compatibility | All Anycubic Resins | |
| System & Mechanical Design | Build Platform | Precision Steel Platform |
| Z Axis | Dual Rail + Ball Screw | |
| Release Film | NFEP | |
| Resin Vat | ≤1 L | |
| Machine Leveling | Auto-Leveling 3.0 with Feedback | |
| Power Loss Resume | Supported | |
| Power Supply | 215W | |
| 215W Protection Film | Bump-Release Tech (Integrated) | |
| Resin Auto Fill Unit | Not Supported | |
| Dynamic Temperature Control Resin Vat | Supported | |
| Slicing Software | Photon Workshop(+ Chitubox/Lychee/Tango) | |

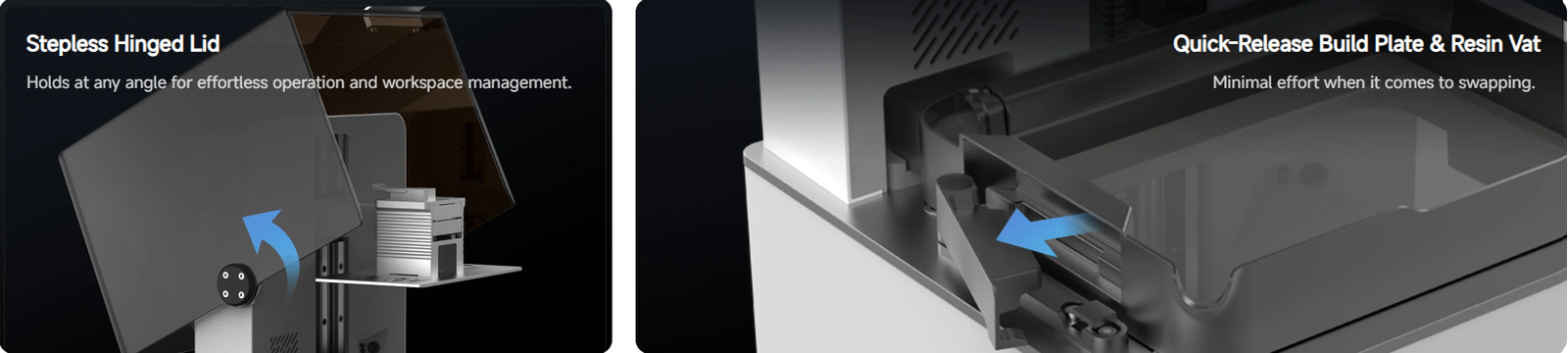

| Experience & Features | Hinged Cover | Smooth Hinge (>45° stepless) |
| Operating Screen | 4.5" Resistive Touchscreen | |
| Air Purifier | Optional AirPure 2.0 | |
| Lcd Screen | 10.1" Monochrome LCD (14K) | |
| Anycubic App | Supported | |
| Multilingual Support | EN / CN / DE / FR / IT / ES / RU / JP / PT / KR | |
| Machine Weight | 13.6 kg | |
| Package Weight | 17.6 kg | |
| Product Dimensions | 366*338*539 mm³ | |
| Packaging Dimensions | 420*430*620 mm³ | |
