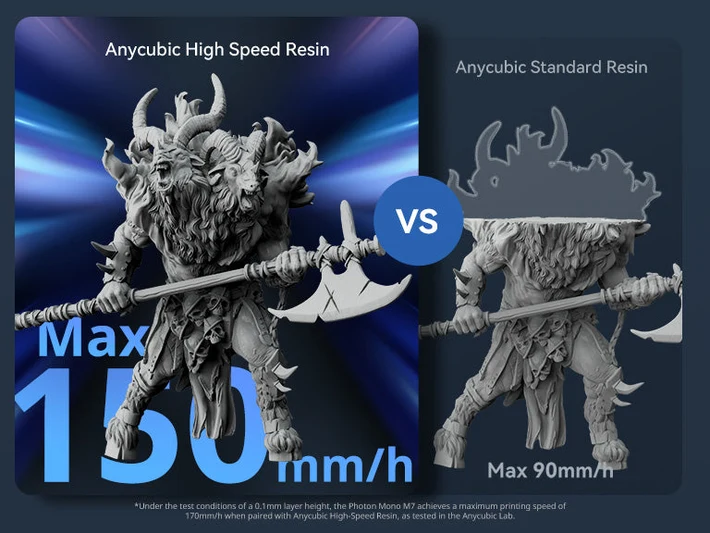

.Print Speed up to 150mm/h① Multiple
.Technological Breakthroughs to Achieve the Ultimate Speed
[1] 1 millionth of a second.
[2] When printing with a 0.05mm thickness in standard high-precision mode, the speed increase value may vary among different models.

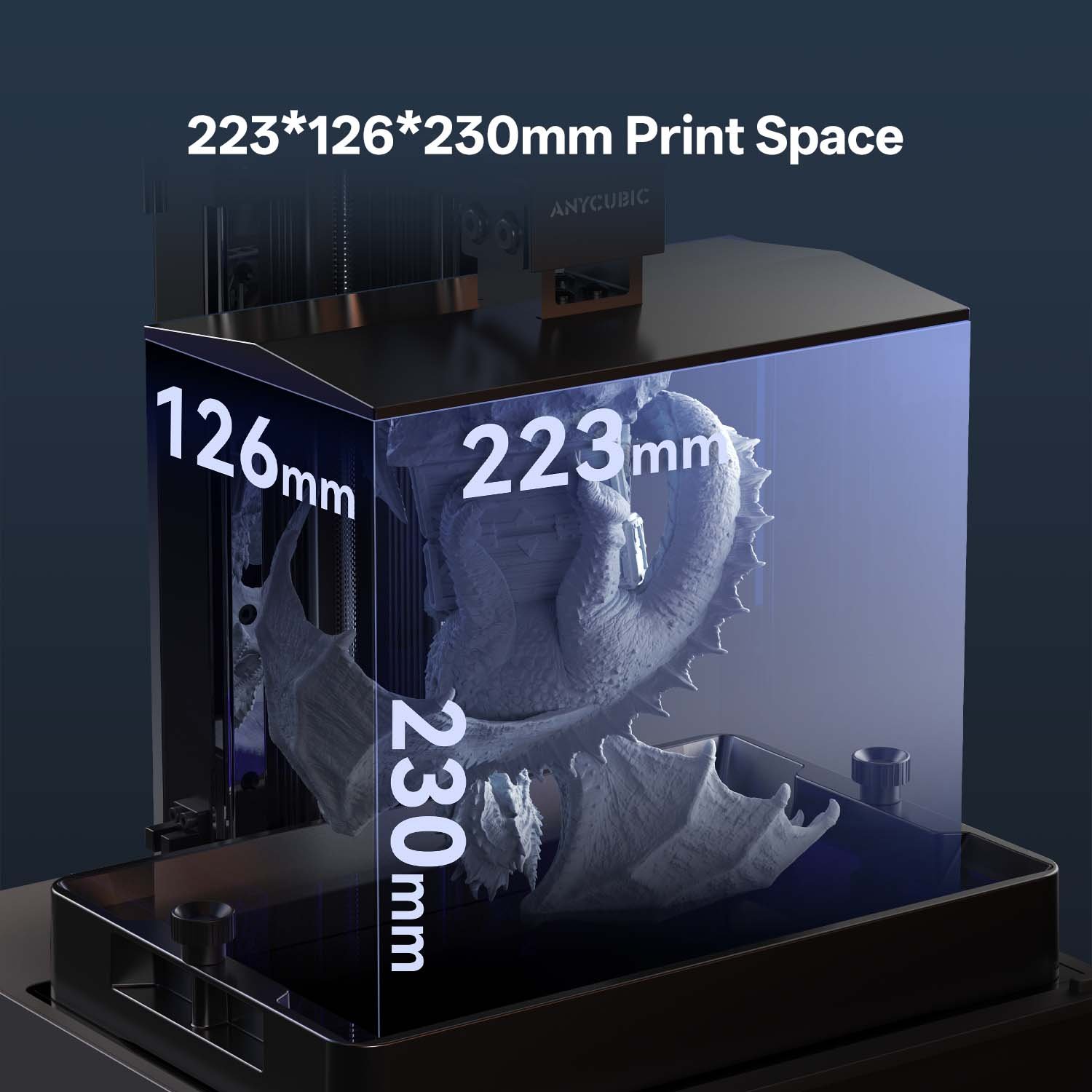

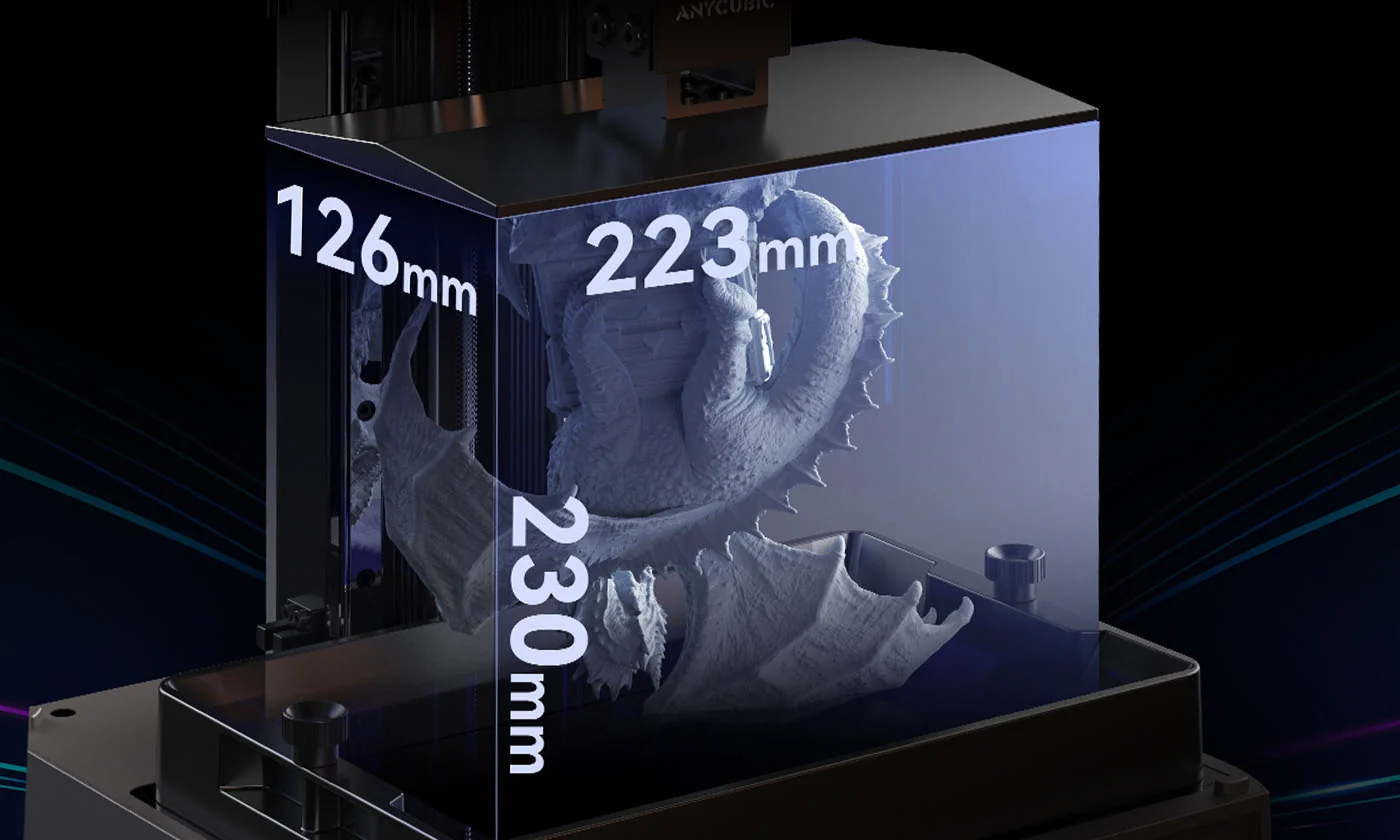

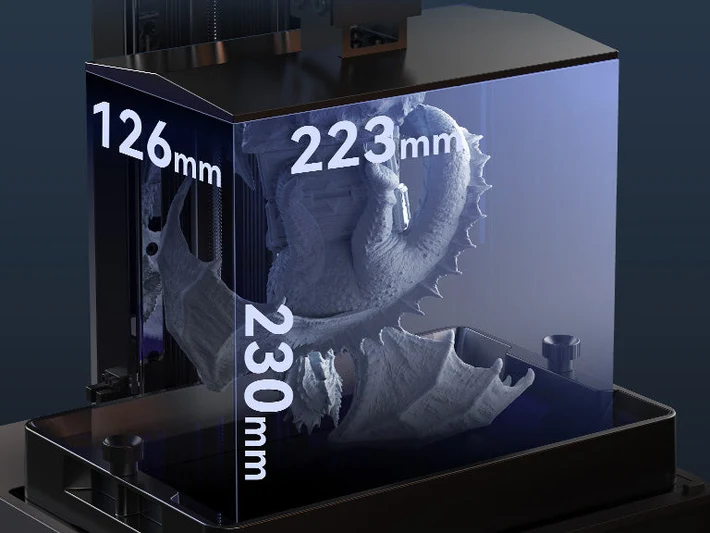

Photon Mono M7 has a build volume of 223*126*230mm³, providing ample space for your creativity.

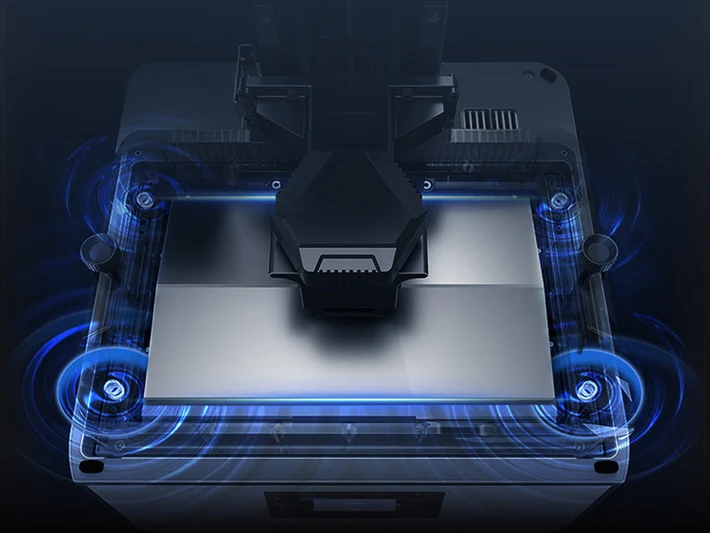

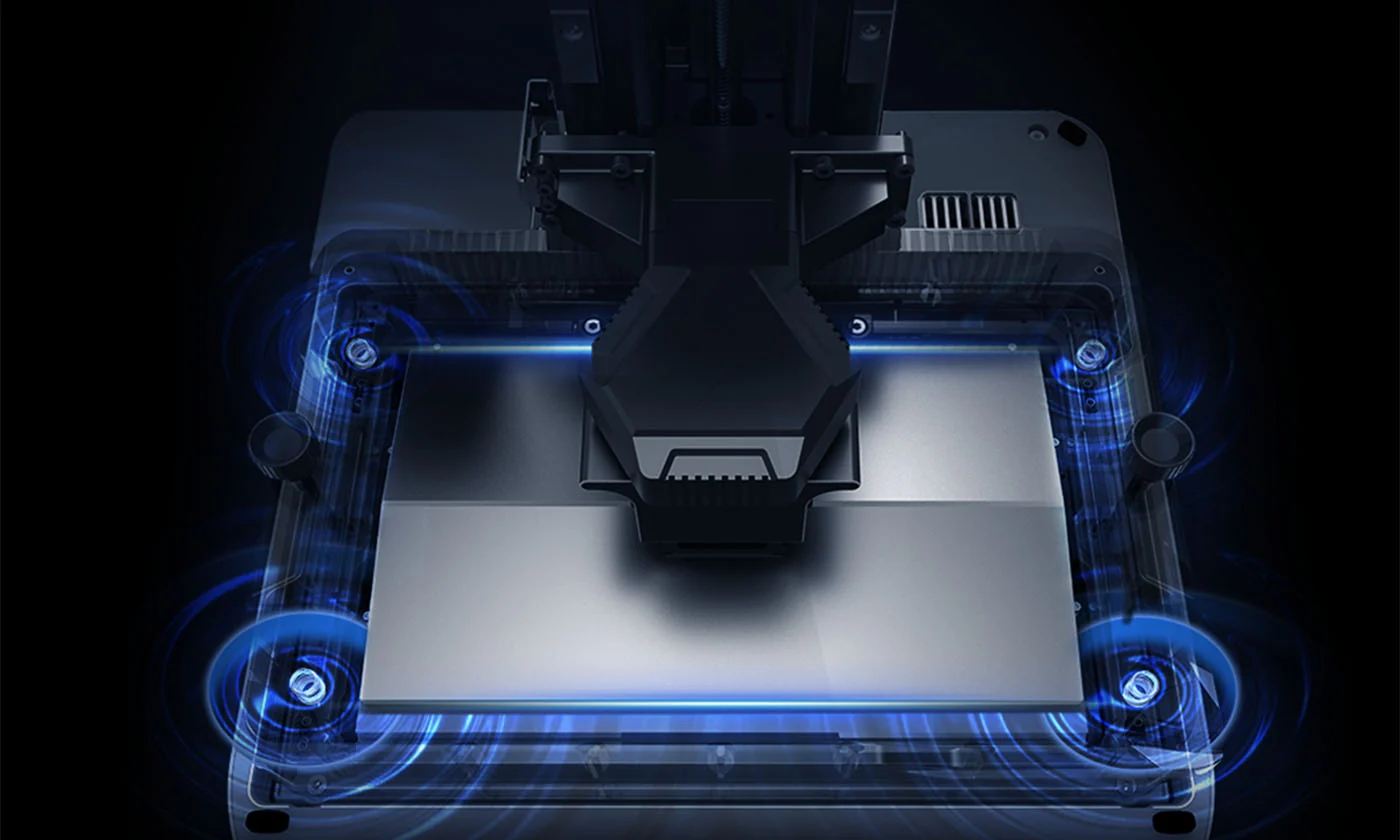

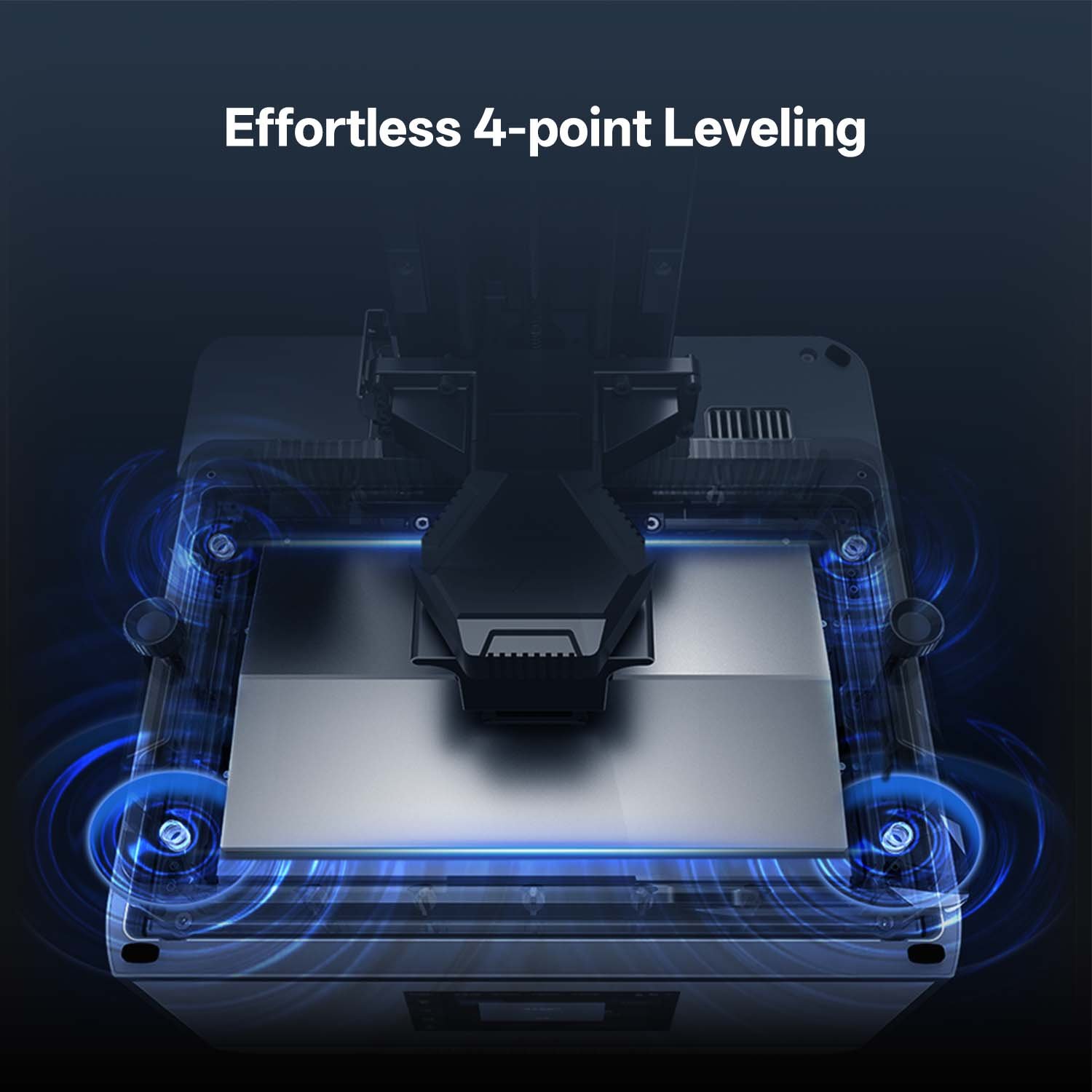

Enhanced 4-point leveling minimizes the gap between the build plate and the screen to improve the leveling accuracy.

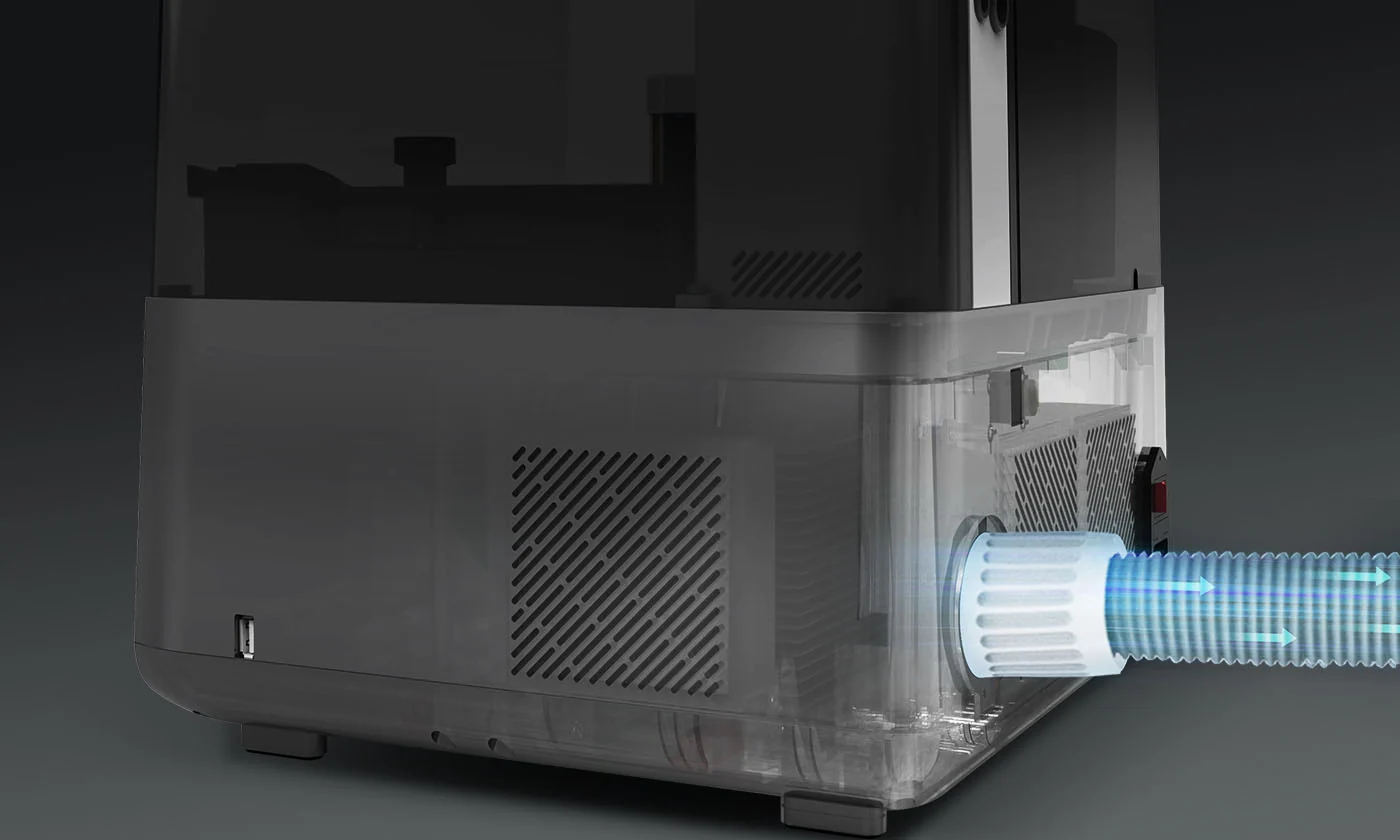

Optional ventilation hose attachment for reduce resin odor and improve air quality.
Detailed hardware & material parameters
| Item | Specification | |
|---|---|---|
| General | Brand | ANYCUBIC |
| Category | Resin 3D Printer | |
| Core Printing Performance | Printing Volume | 223*126*230mm³ (6.5L) |
| Printing Speed | Max Speed ≤90mm/h; Standard Resin (0.1mm): ≤90mm/h; High-Speed Resin (0.1mm): ≤150mm/h | |
| Layer Height Range | 0.01 – 0.15mm | |
| X/Y Axis Resolution | 16.8 × 24.8μm | |

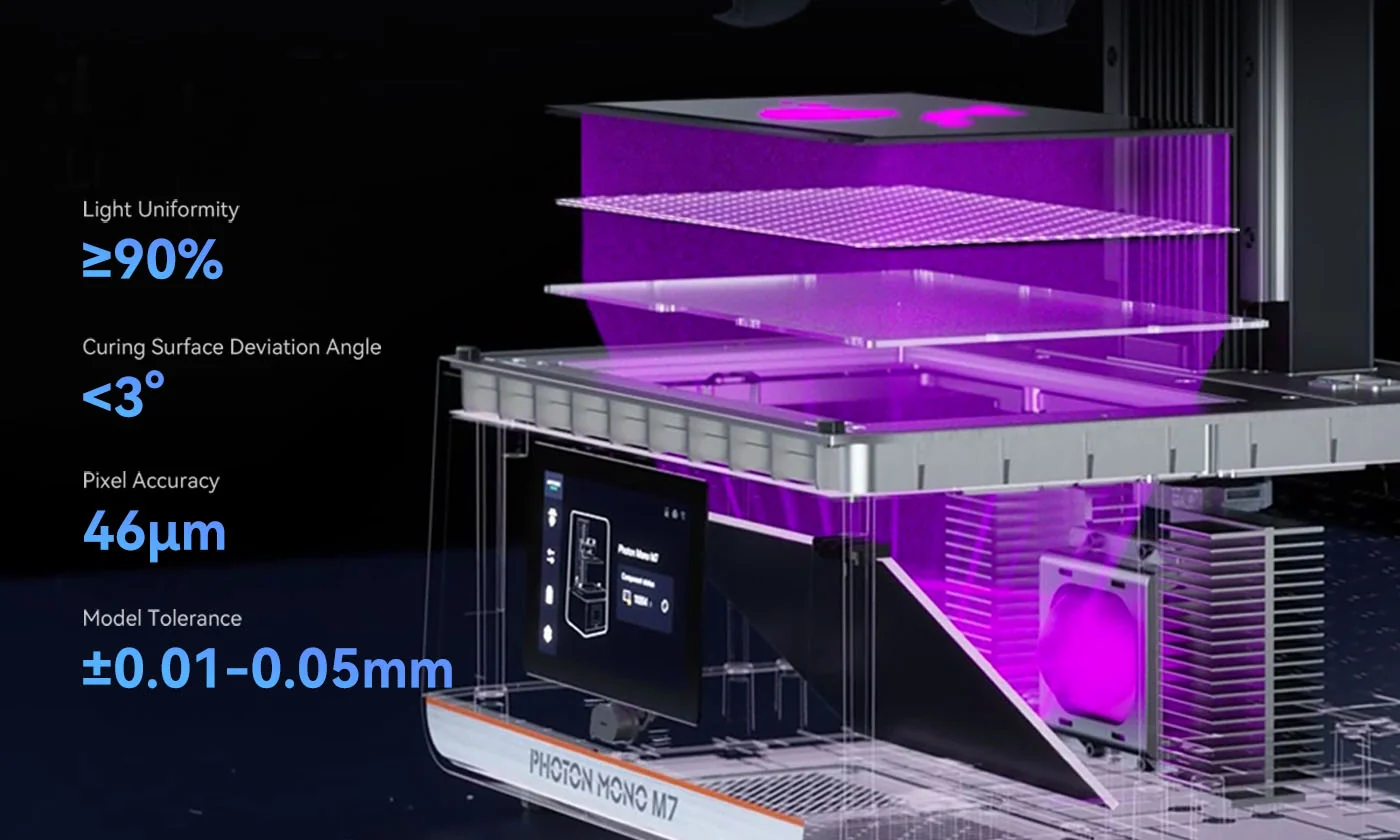

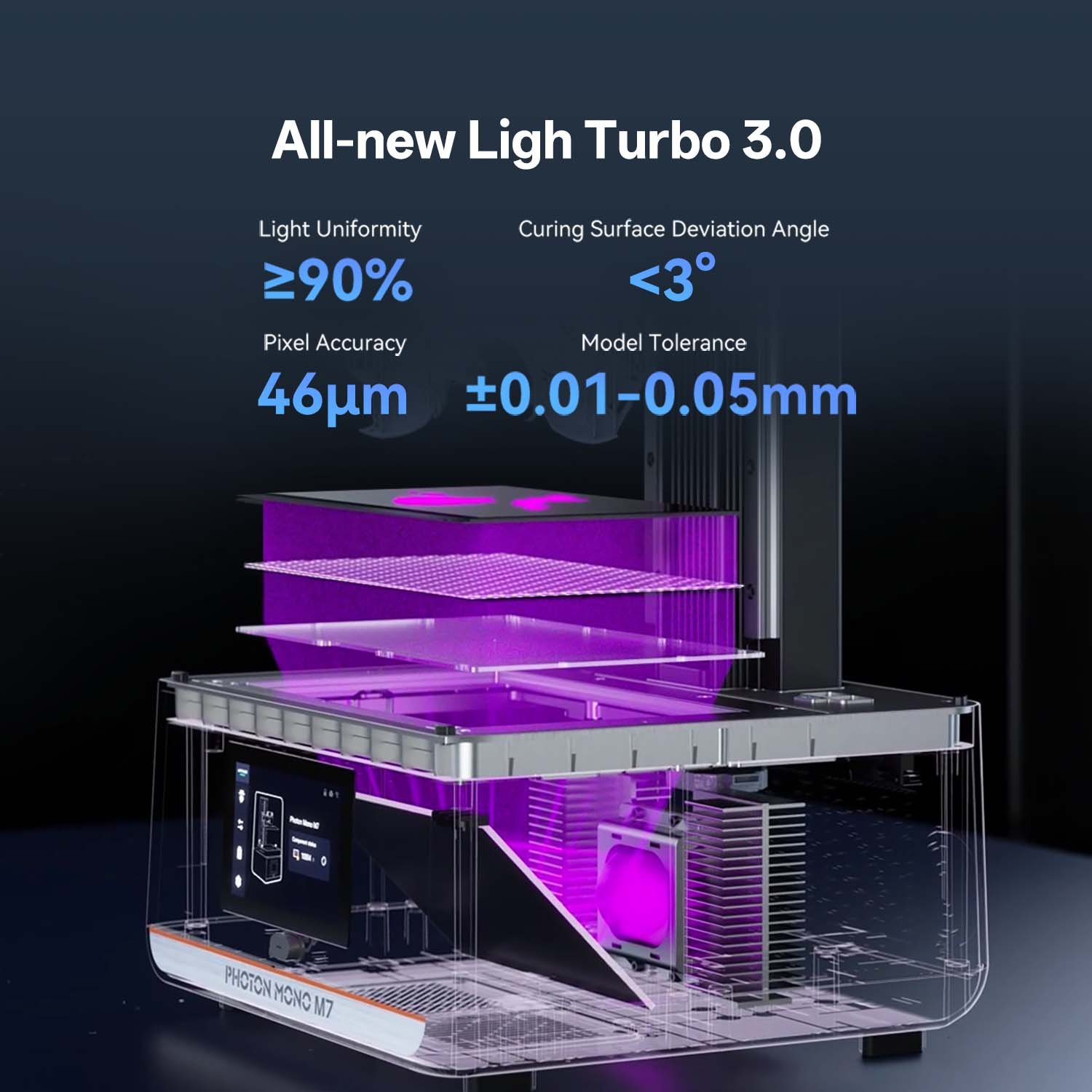

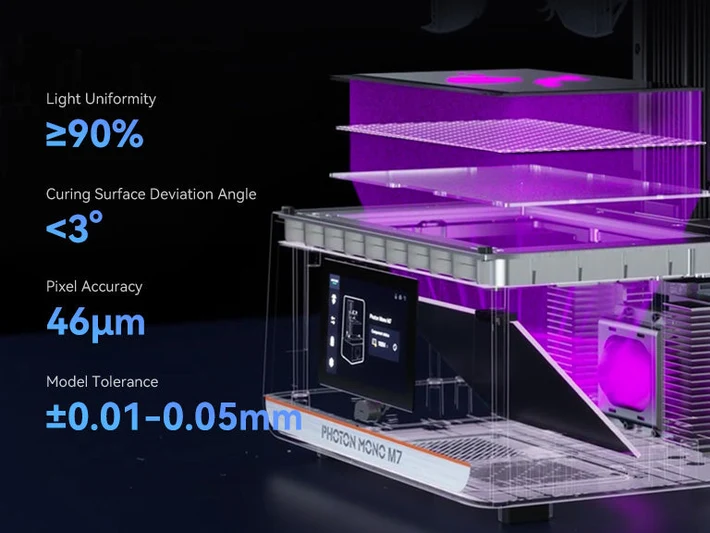

| Light Source | COB Light Source+ Fresnel Lens+Light Uniformity Algorithm | |
| Light Intensity | 4500 ±10% μW/cm² | |
| Material Compatibility | High-speed, Water-washable, Standard, ABS-like, and Plant-based Resins, etc | |

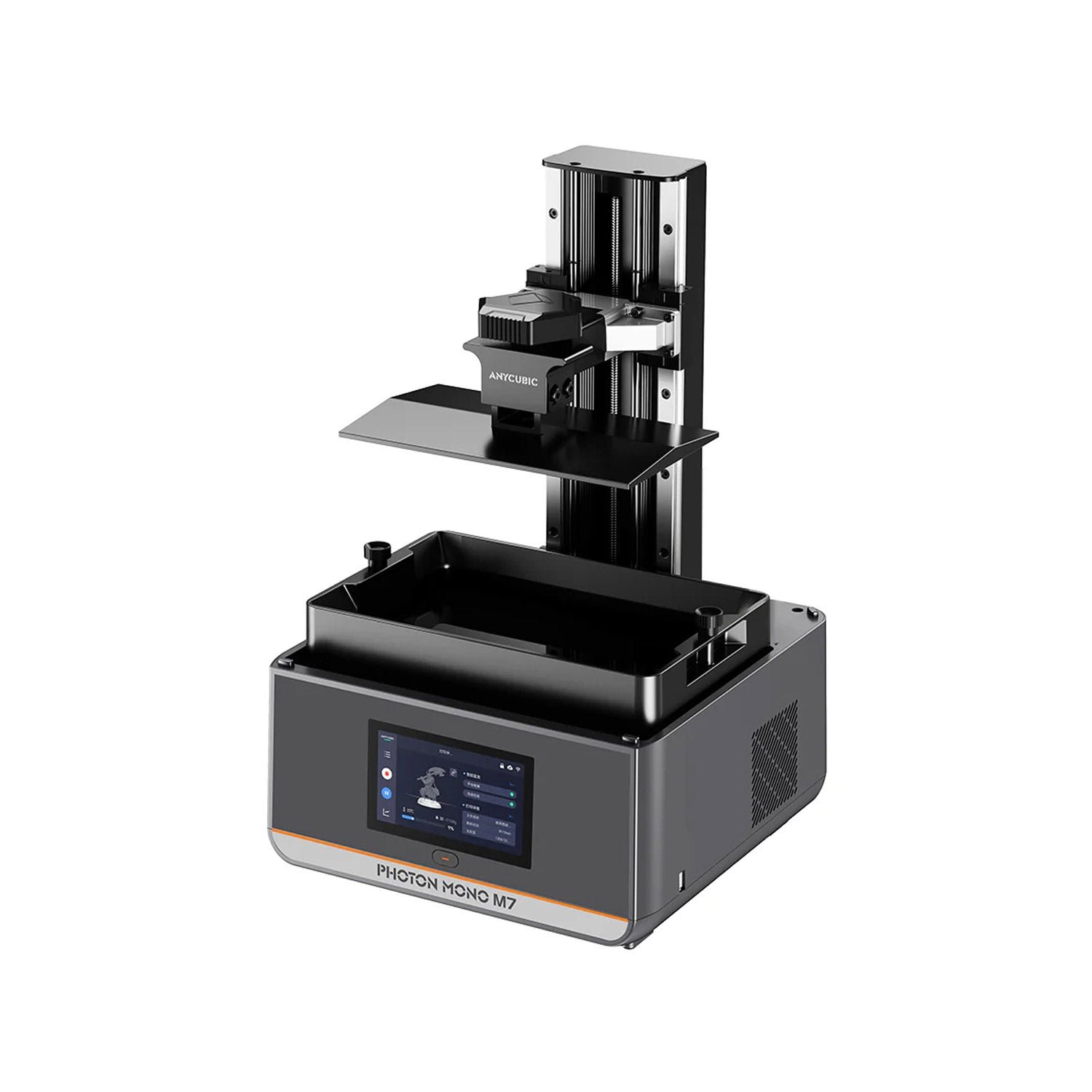

| System & Mechanical Design | Build Platform | Laser-engraved Build Plate |
| Z Axis | Dual Linear Rails with 10 μm Precision | |

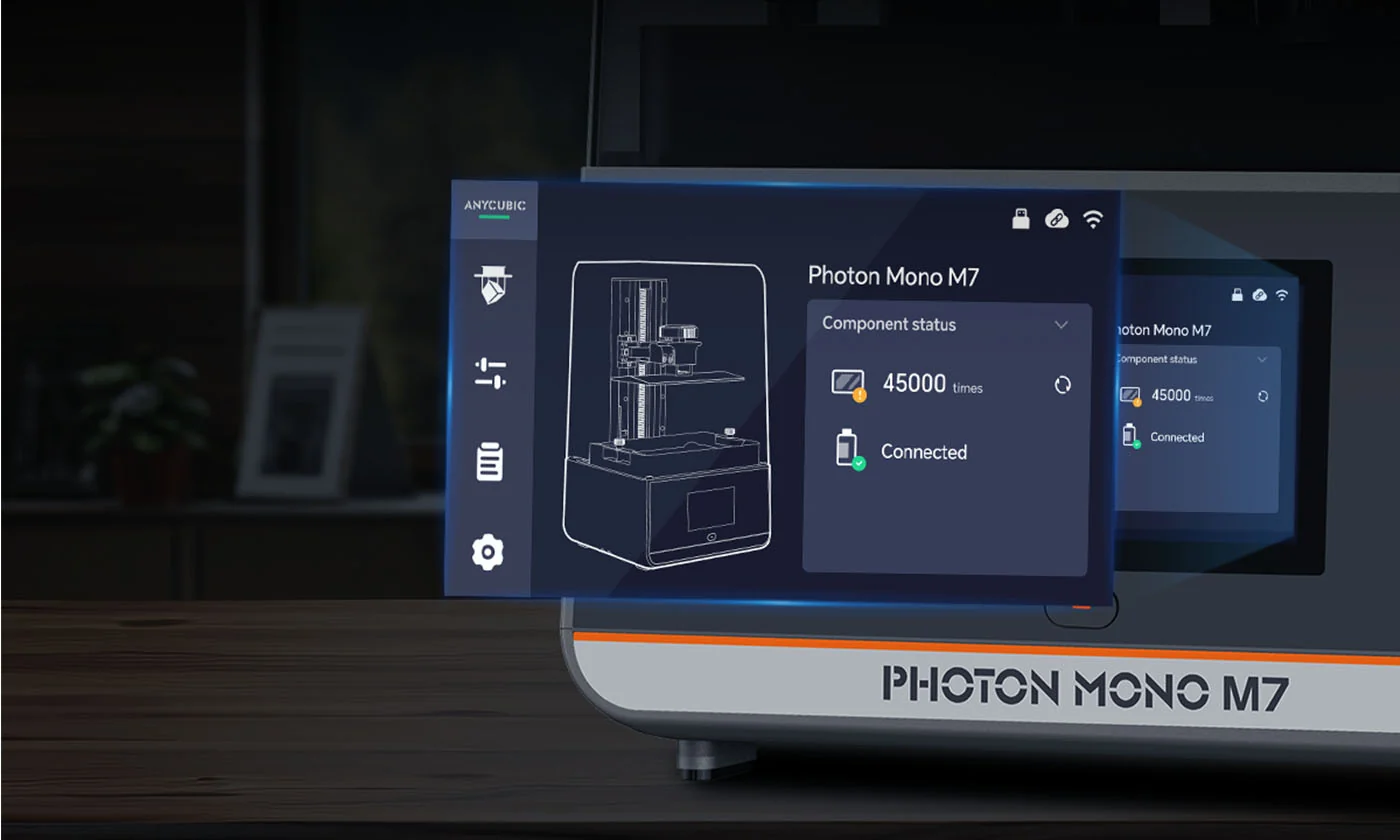

| Release Film | Improved ACF Film | |
| Resin Vat | ≤1L | |
| Machine Leveling | Leveling-free | |
| Power Loss Resume | Not Supported | |
| Power Supply | 135W | |
| Protection Film | Replaceable Scratch-resistant Film | |
| Resin Auto Fill Unit | Not Supported | |
| Dynamic Temperature Control Resin Vat | Not Supported | |

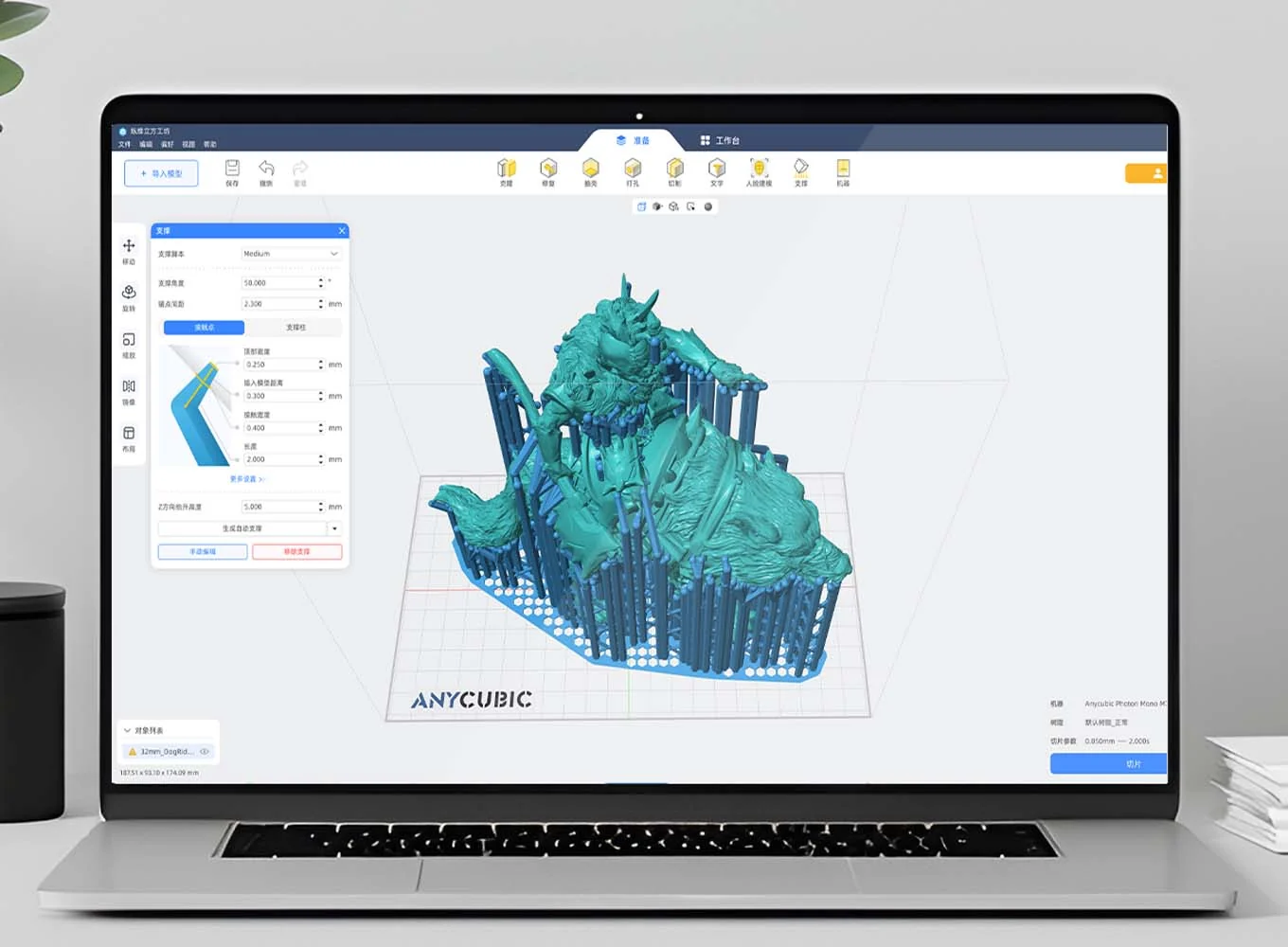

| Slicing Software | Photon Workshop, Chitubox, Lychee Slicer (Scheduled) | |
| File Transfer | USB/WiFi/LAN (Scheduled) | |
| User Experience & Features | Hinged Cover | - |
| Operating Screen | 4.3" Touch-Control | |
| Air Purifier | Optional Accessory | |

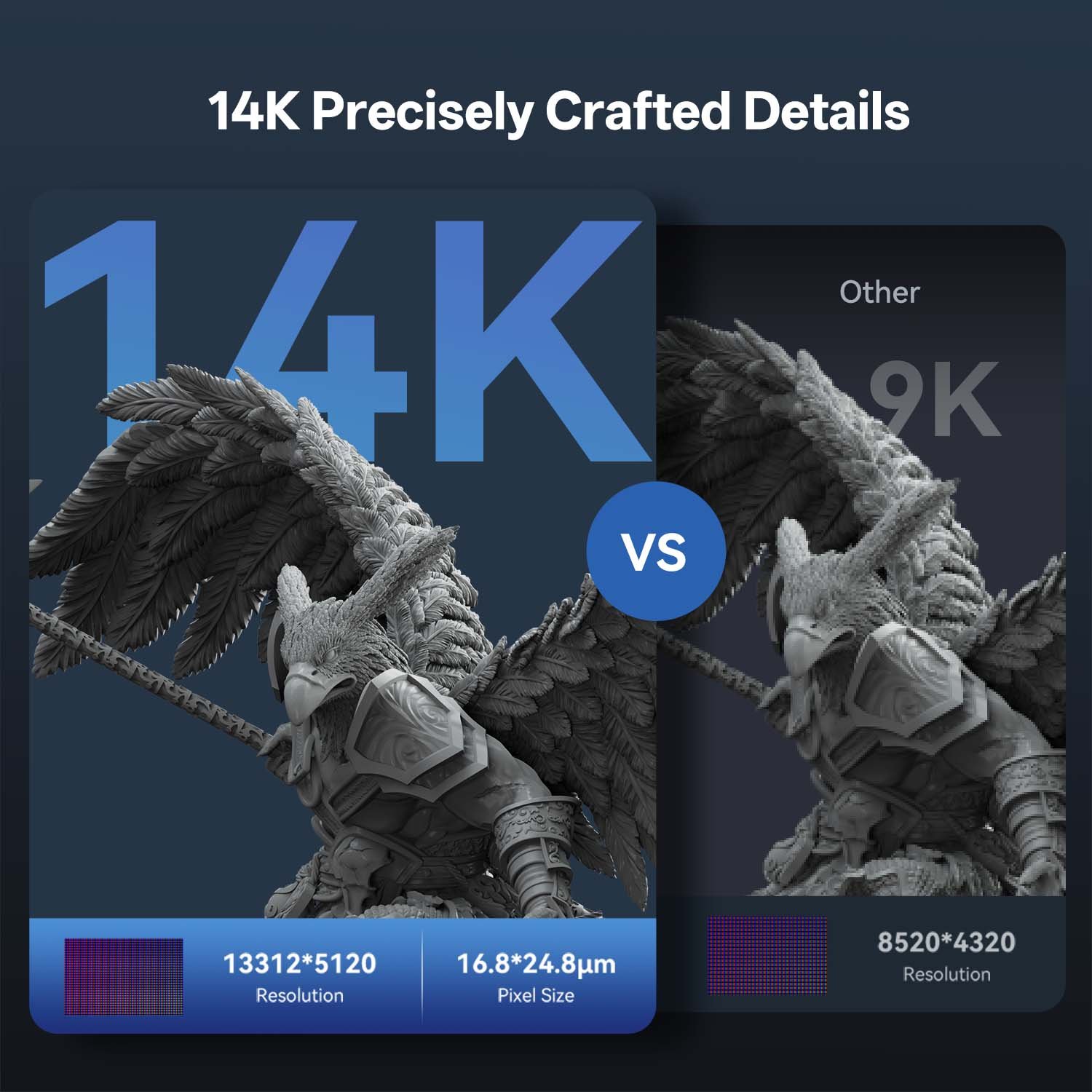

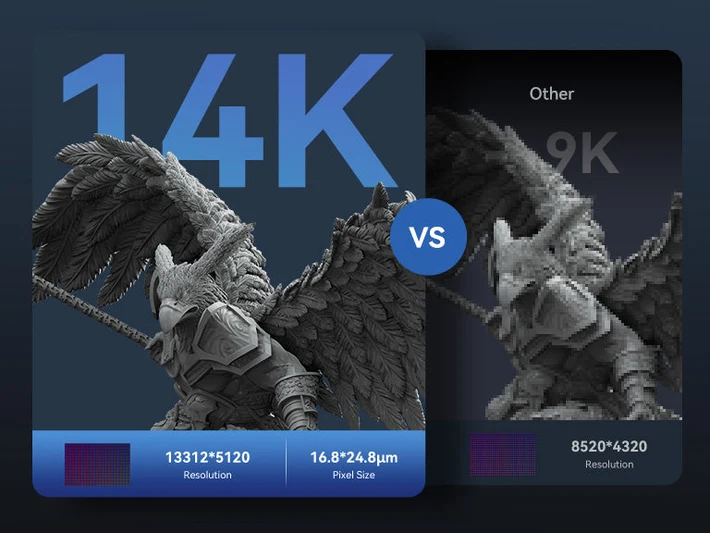

| Lcd Screen | 10.1-inch Monochrome LCD, 14K Resolution | |

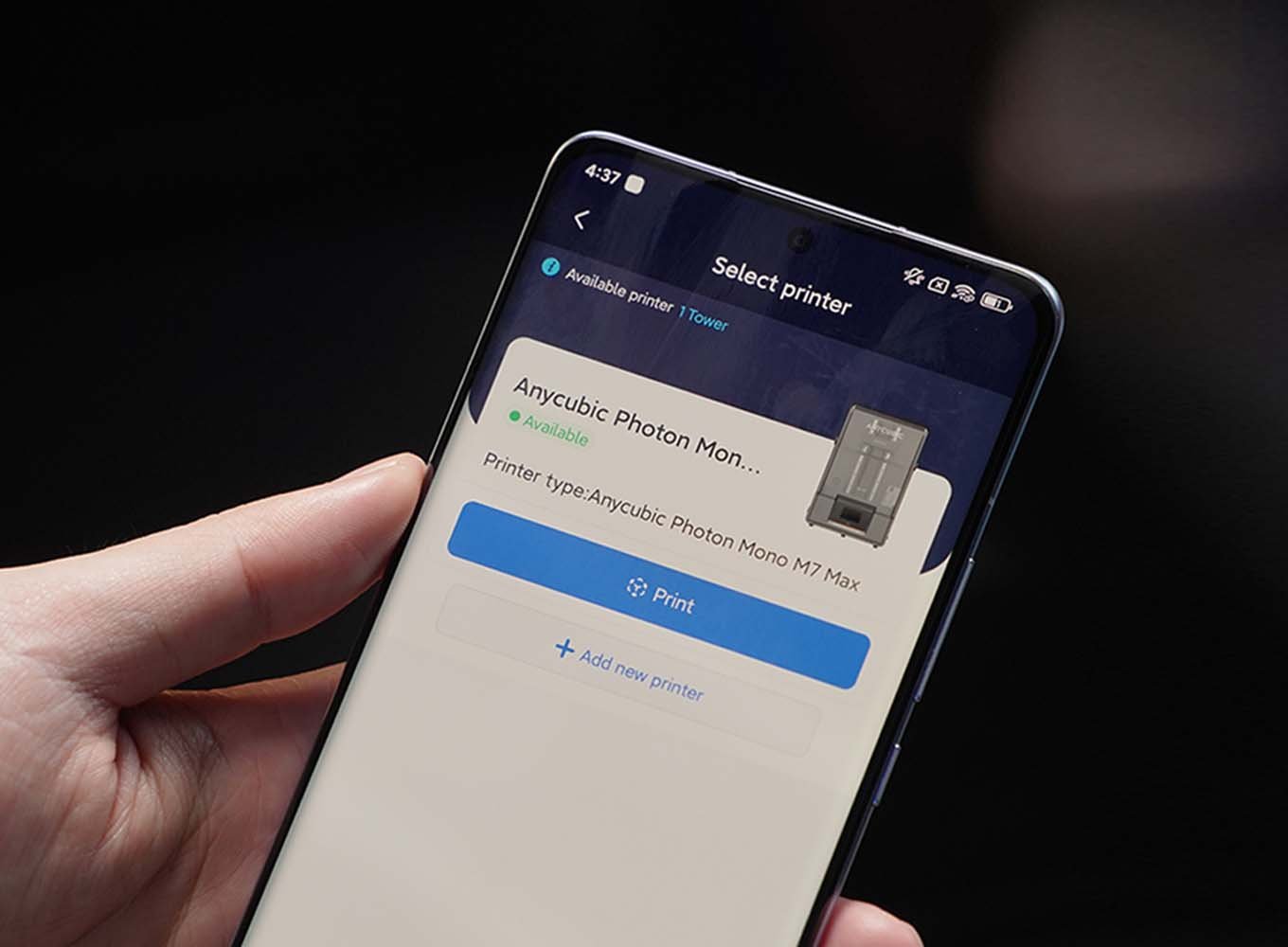

| Anycubic App | Supported | |
| Multilingual Support | EN / CN / DE / FR / IT / ES / RU / JP | |
| Machine Weight | 12kg | |
| Package Weight | 13kg | |
| Product Dimensions | 312*315*520mm³ | |
| Packaging Dimensions | 620*395*395mm³ | |
